The Model 3000 family of LED explosion-proof lights. These warning lights are UL listed for Class I, Division 1, Groups C & D; Class II, Division 1, Groups E, F & G; and Class III.

They are available in five LED colors (Amber, Blue, Green, Red, and White).TOMAR’s explosion-proof LED lights feature a unique thermal management system that utilizes internal cooling fins to draw heat away from the LED’s. This allows for longer lamp life and more consistent light output. All electronics and LED’s are guaranteed against manufacturing defects for a full 5 years.

An internal switch allows for easy selection among steady-burning, single or double flash mode. Each light will operate over a wide AC and DC input voltage range. The DC version is designed to operate from 10-36 VDC; the AC version from 85-265 VAC.
The compact 3000 family series are constructed to NEMA 4X standards and are marine-rated for use in salt water environments. Design features include housing made of die cast high strength copper-free aluminum alloy with baked powder epoxy finish, stainless steel hardware, o-ring sealed pre-stressed glass dome with double pitch acme threads for smooth assembly and ease of maintenance.

Model Overview

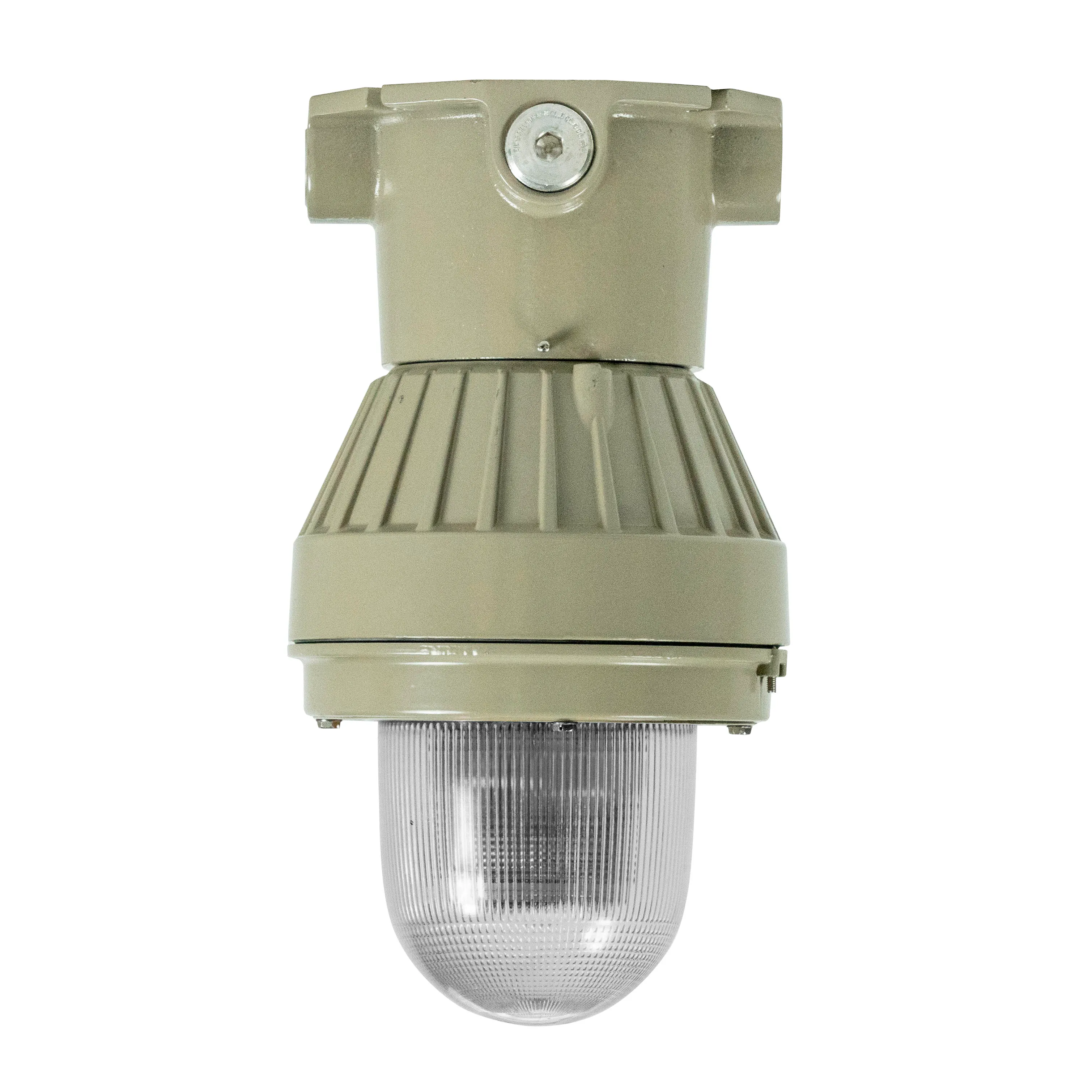

• Model No. 3024XLF - Description: Flange mount, 3/4” hubs - Voltage: 12-36 VDC
• Model No. 3124XLF - Description: Flange mount, 3/4” hubs - Voltage: 120-240 VAC

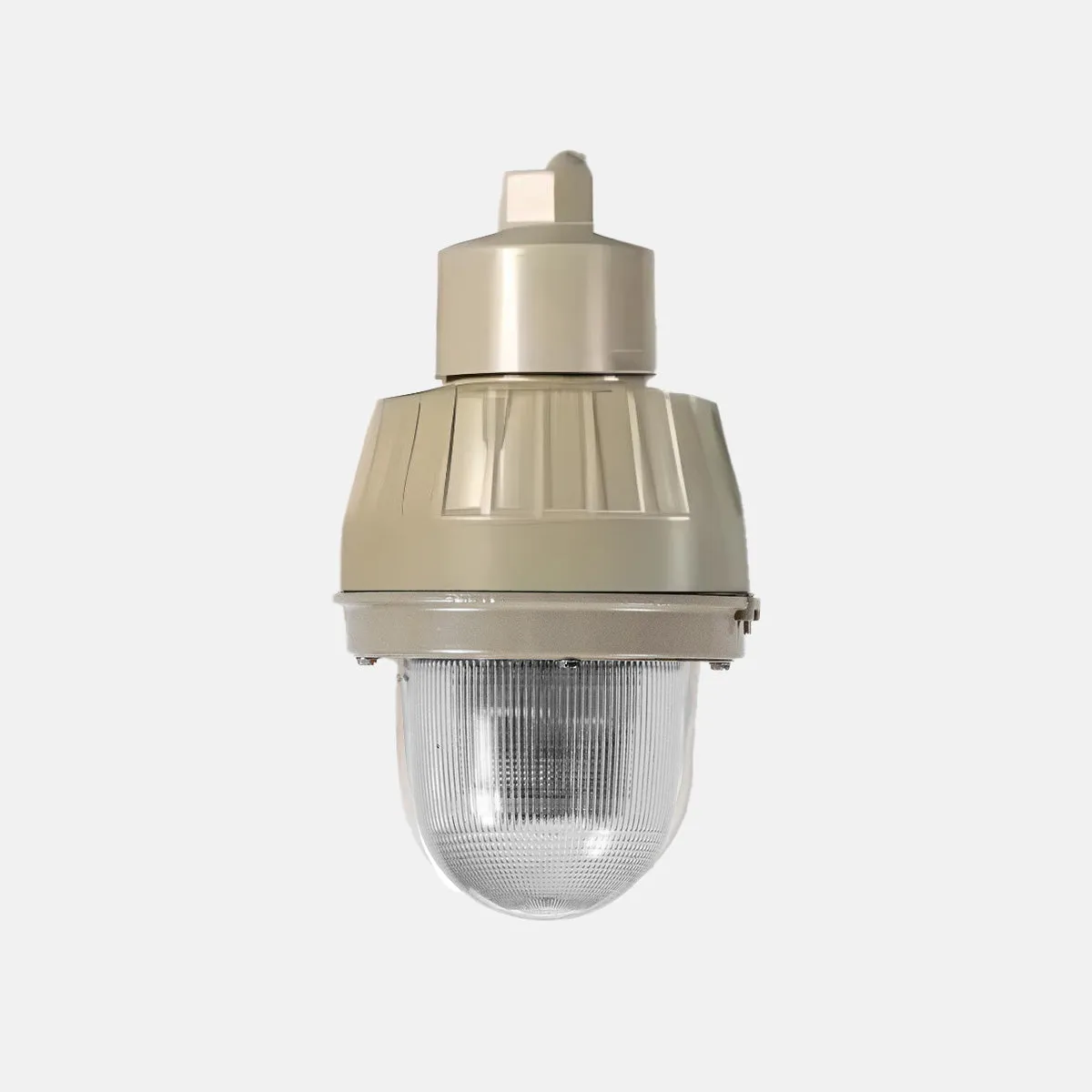

• Model No. 3024XLP - Description: Pendant mount, 3/4” hubs - Voltage: 12-36 VDC
• Model No. 3124XLP - Description: Pendant mount, 3/4” hubs - Voltage: 120-240 VAC

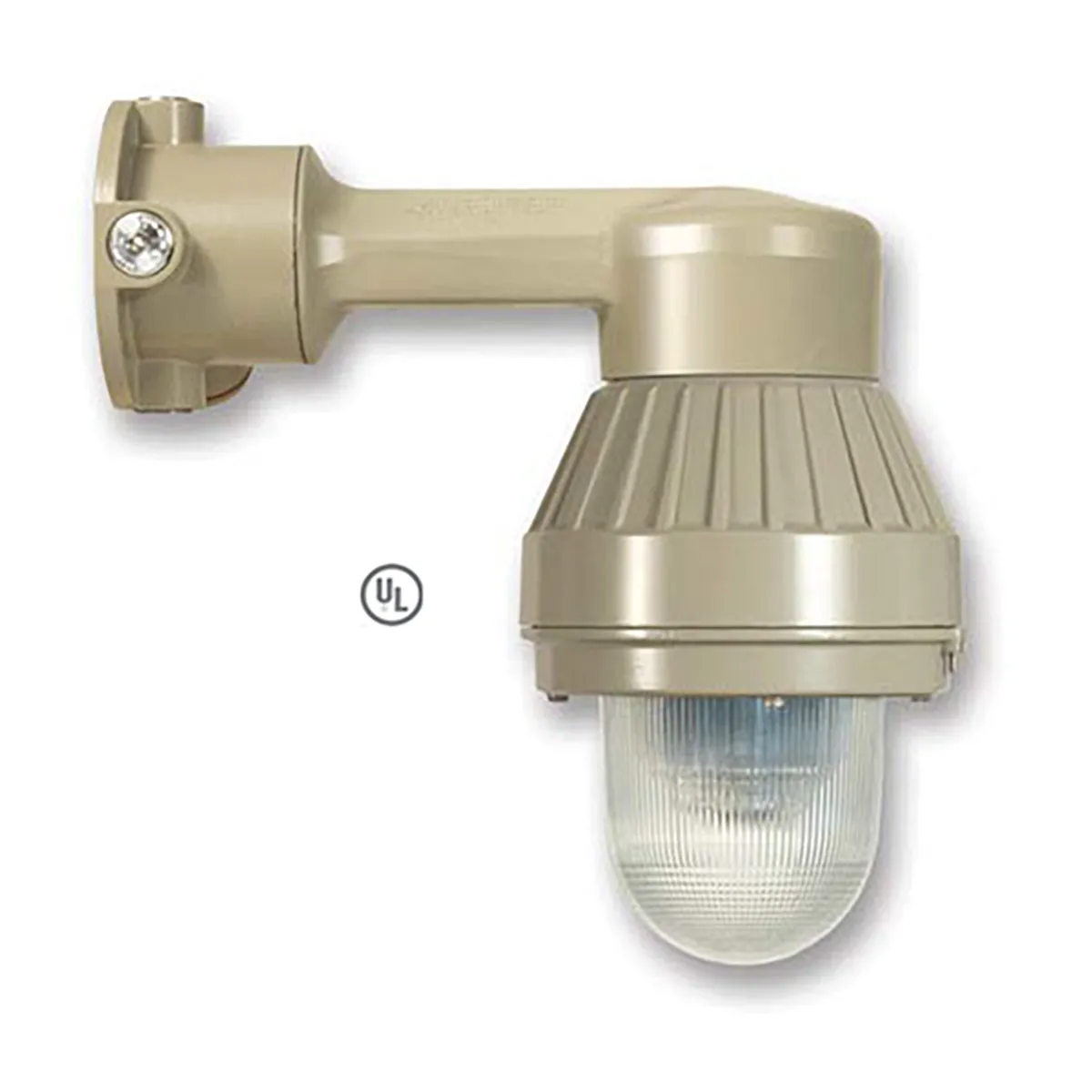

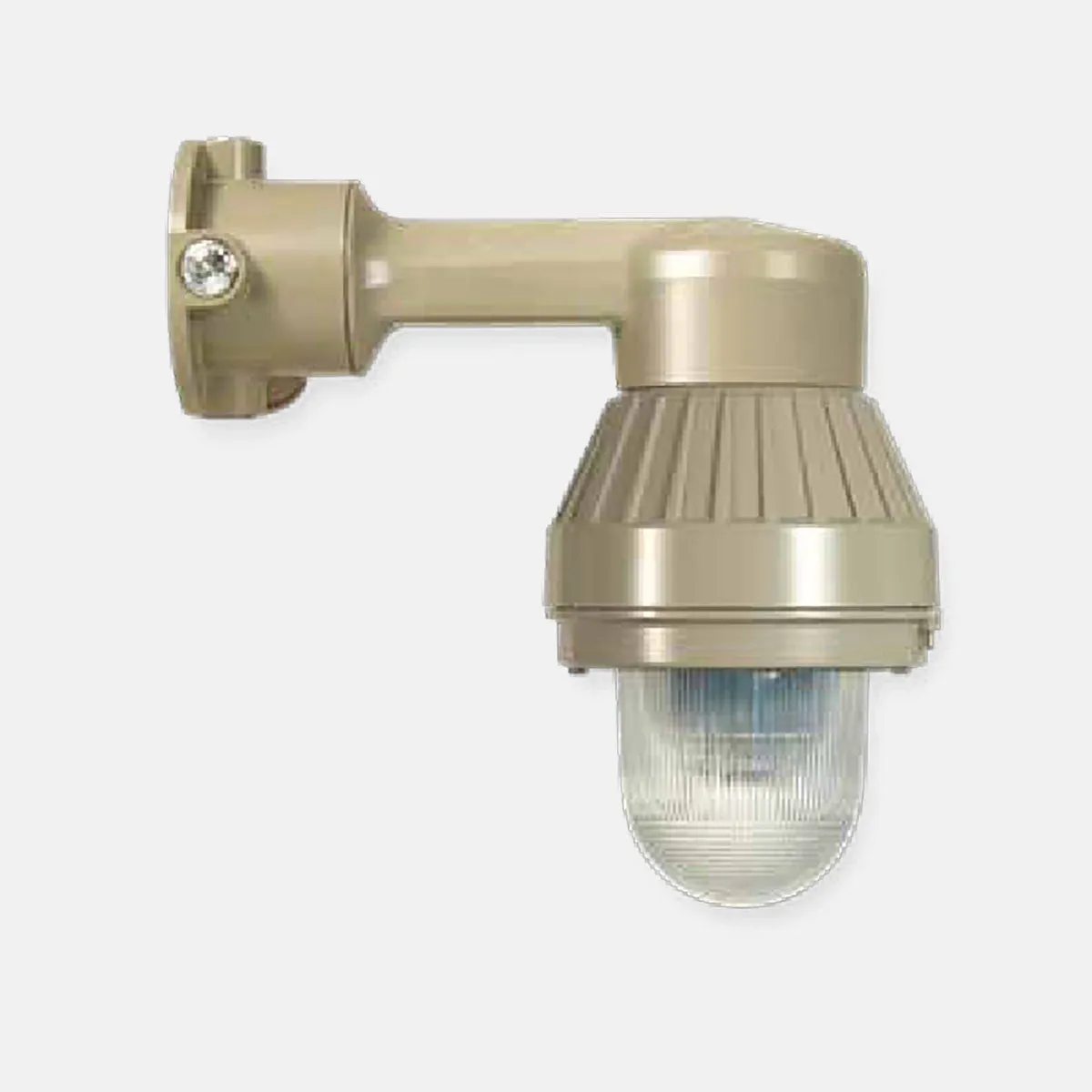

• Model No. 3024XLW - Description: Wall mount, 3/4” hubs - Voltage: 12-36 VDC
• Model No. 3124XLW - Description: Wall mount, 3/4” hubs - Voltage: 120-240 VAC

Specs

• Lamp Type: LED
• Flash Rate:
  • 80 Single Flash per minute
  • 40 Double Flash per minute
• Voltage and Amperage:
  • 170 mA @ 24 VDC Flashing; 500 mA Steady-burn
  • 035 mA @ 120 VAC Flashing; 100 mA Steady-burn
  • 020 mA @ 240 VAC Flashing; 050 mA Steady-burn
• In-rush Current:
  • 1.5 Amps @ 24 VDC Flashing and Steady-burn
  • 065 mA @ 120 VAC
  • 125 mA @ 240 VAC
• Operating Temperature: -40°C to 85°C
• Temperature Code: T6 – All voltage and temperature ranges

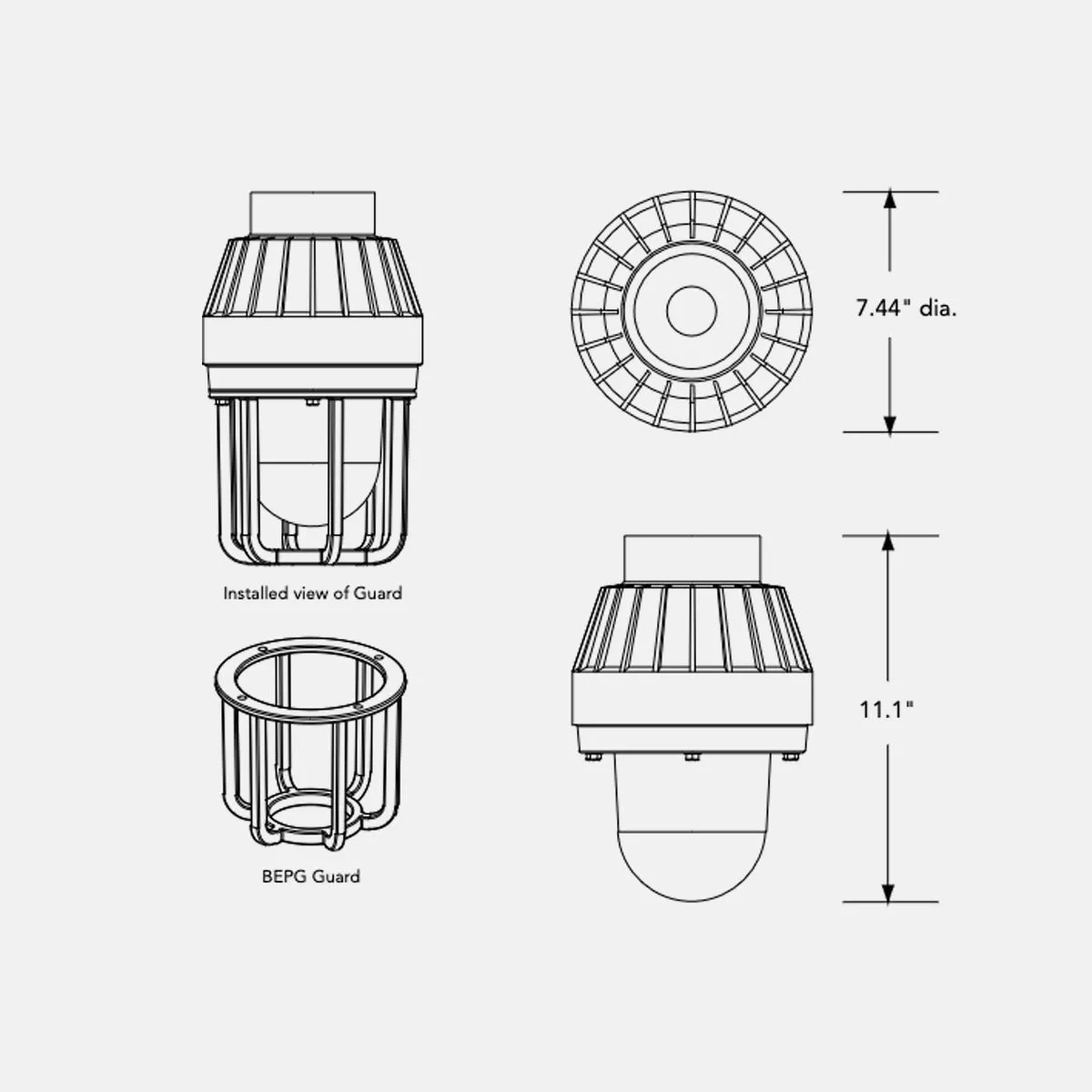

• BEPG: Lens Guard

Architect and Engineer Specifications

LED visual signaling beacon shall be Tomar model number series 3024 or 3124 or approved equal. The beacon shall be UL Listed Class I, Division 1, Groups C and D; Class II, Division 1, Groups E, F and G; and Class III for use in specified hazardous locations and /or combustible atmospheres as classified by the National Electric Code. Operating voltage ranges shall be 10-36 VDC or 85-265 VAC. Operating temperature range shall be from -40 C to 85 C. Beacon shall have built-in selector switch to allow operation in Steady On, Single Flash, or Double Flash modes. Beacon must be rated NEMA 4X, with housing made of die cast high-strength copper-free aluminum alloy with baked powder epoxy finish, stainless steel hardware, O-ring sealed pre-stressed globe with double pitch acme threads for smooth assembly and ease of maintenance. The housing must be designed to accommodate a dome guard.
