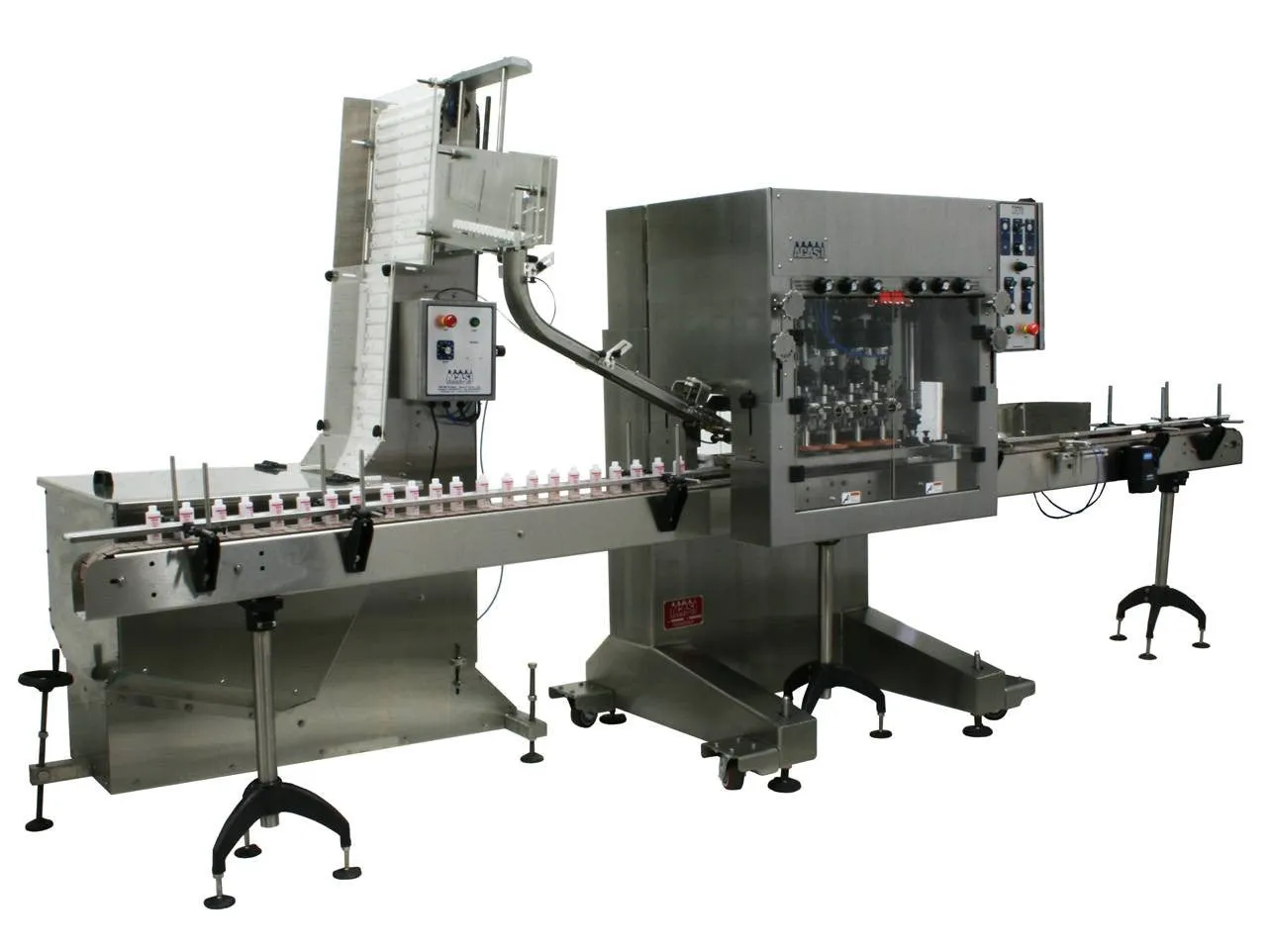

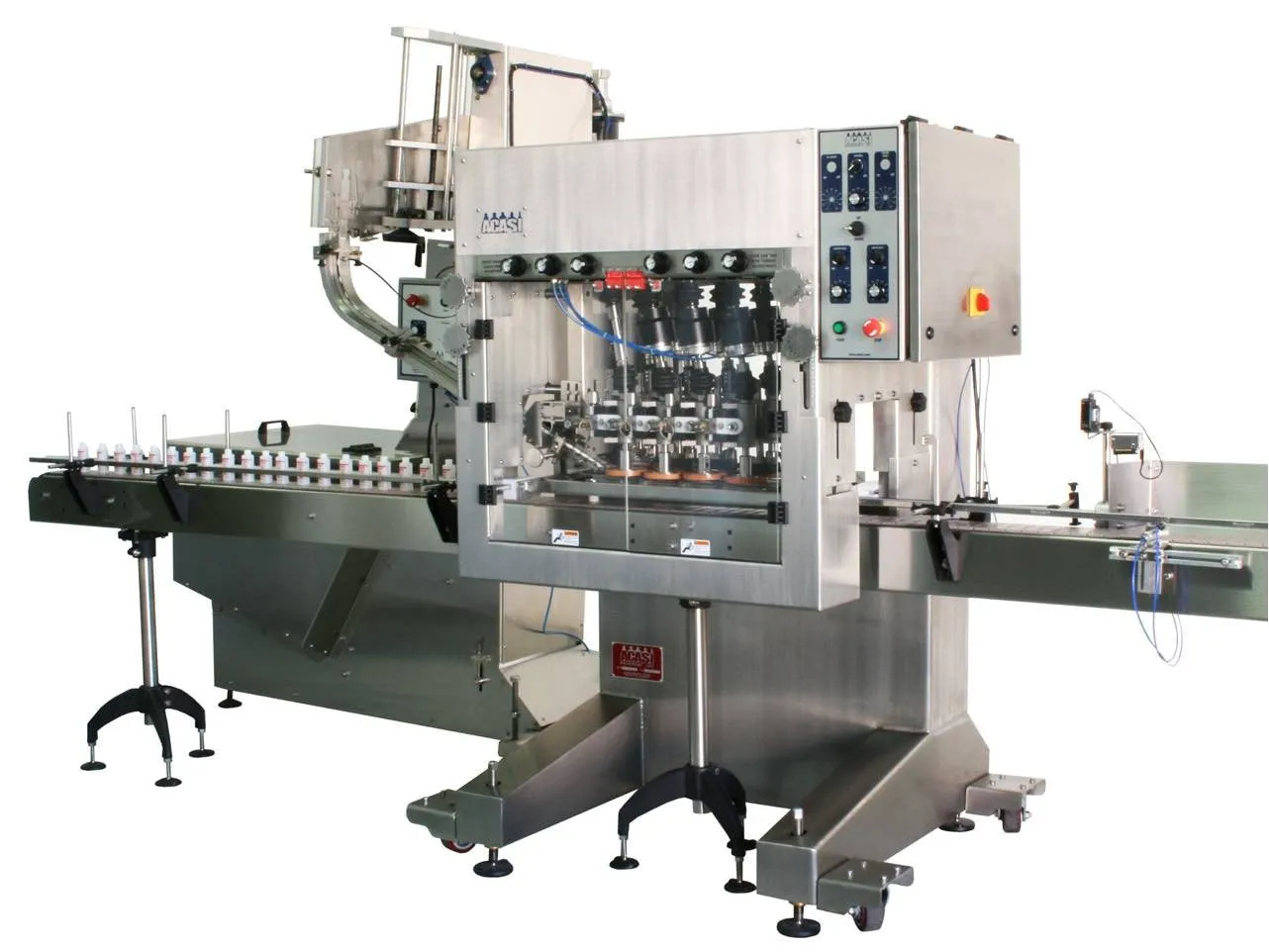

ACASI Inline Cap Tightener Model CAI-10X

• Heavy duty 304 stainless steel welded C frame for easy mounting over existing conveyors
• Heavy duty linear carriage system for height adjustability
• All shafts and threaded rods manufactured in 304 stainless steel
• Heavy duty casters standard
• No change of parts needed for a wide range of containers
• Front and back covers with safety interlock switches standard
• Top driven to insure no product spillage into drive assembly
• Adjustable height to accommodate containers from 1 inch to 14 inches tall (Optional power height adjustment)

• 4, 6 or 8 spindle configurations available, single gear box driven
• Independent spring loaded capping discs for better torque and misalignment forgiveness
• Torque is able to be adjusted while the machine is running
• Clutches located away from capping discs to avoid corrosion
• Heavy duty gear driven mechanism; no belts used for power transmission
• Mechanical clutch assemblies standard (Optional pneumatic clutch upgrade available)
• Adjustable speed 1 Hp 3 phase drive motor for capping discs
• Optional second drive motor to rotate the first set of capping discs on the opposite direction
• Most bearings protected by seals
• Capping head assembly manufactured in 316L stainless steal
• All parts manufactured in stainless steel or FDA approved polymer materials
• Independent adjustment for front or back capping discs
• Capping disc position is adjustable while the machine is running, without opening the safety covers
• Fully adjustable for cap sizes ranging from 8 mm to 130 mm in diameter

• Bottle belt width adjusted via front knobs
• Bottle belt height adjusted via front knobs
• Heavy duty gear drive mechanism; no belts used for power transmission
• Adjustable speed heavy duty 1 Hp 3 phase motor gearbox
• Bottle belt assemblies can be adjusted independently for width, taper, and angle to accommodate various sizes and styles of containers
• Optional double belt assembly with independent height and angle adjustment

• 208 - 240 Volts, Single phase, 50/60Hz, 15 Amps
• 5 CFM @ 80 p.s.i.

• Construction in stainless steel
• 18 inches wide belt
• Cap feeder is adjustable for caps from 8mm to 110mm in diameter via quick adjust knobs
• Caps feed on demand; controlled by photoelectric sensor
• Air shutoff valve controlled by photoelectric sensor
• Includes air regulator and filter
• Feeder inclination adjustable from 0 to 5 degrees
• Complete height adjustment by structure 1 inch bolts and/or cap delivery system
• 10 cubic feet cap hopper
• Drive provided by DC gear motor
• Independent Speed Control (potentiometer)
