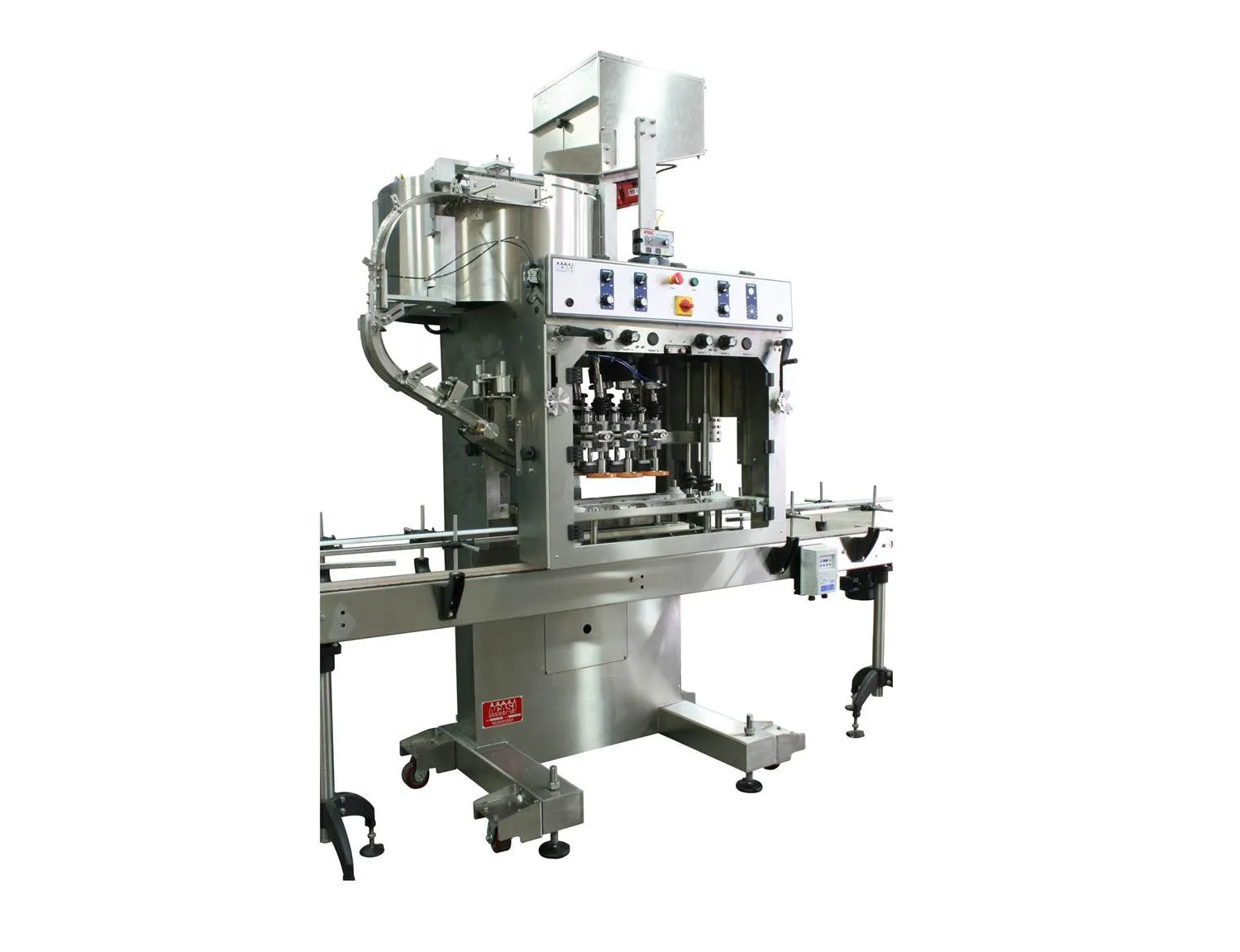

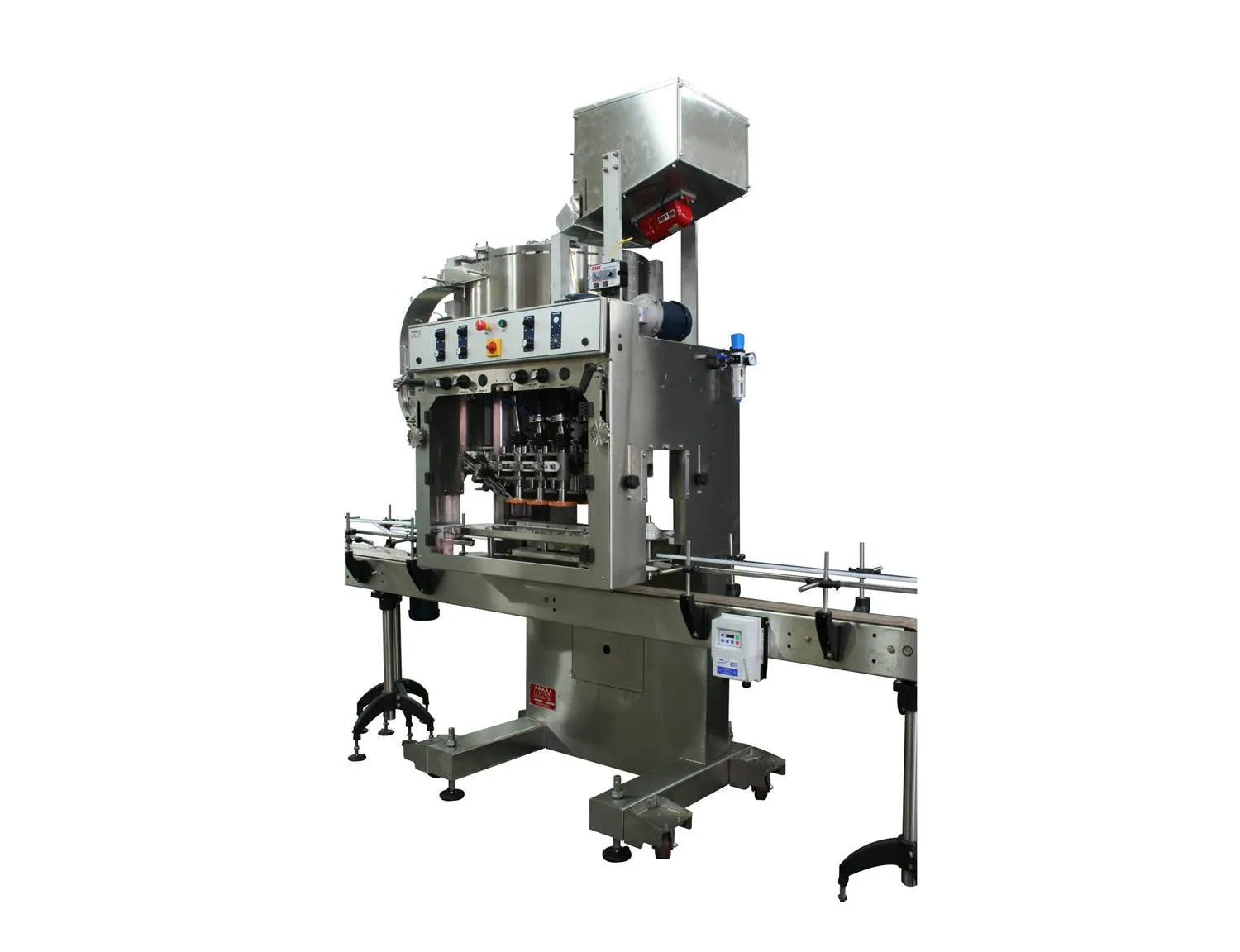

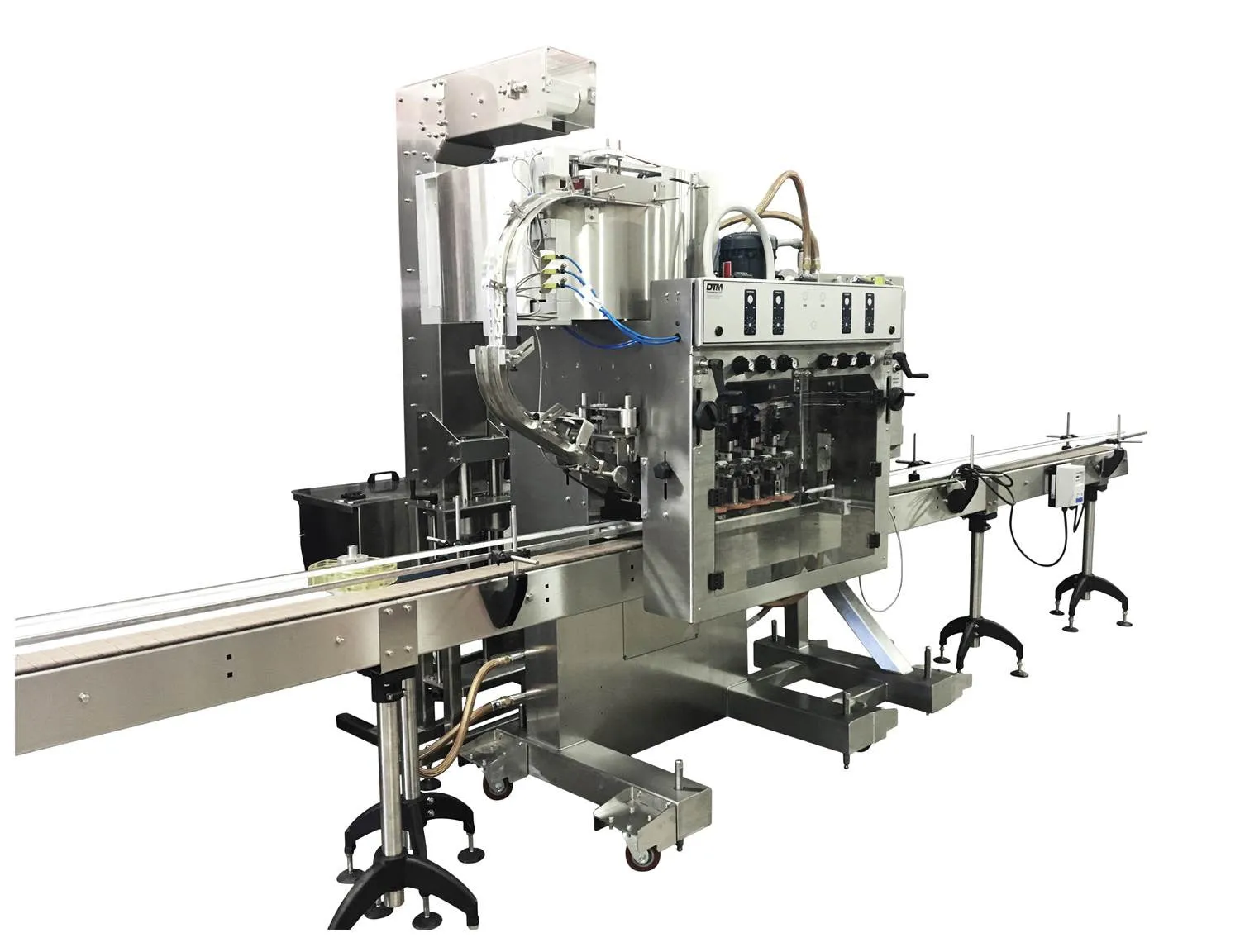

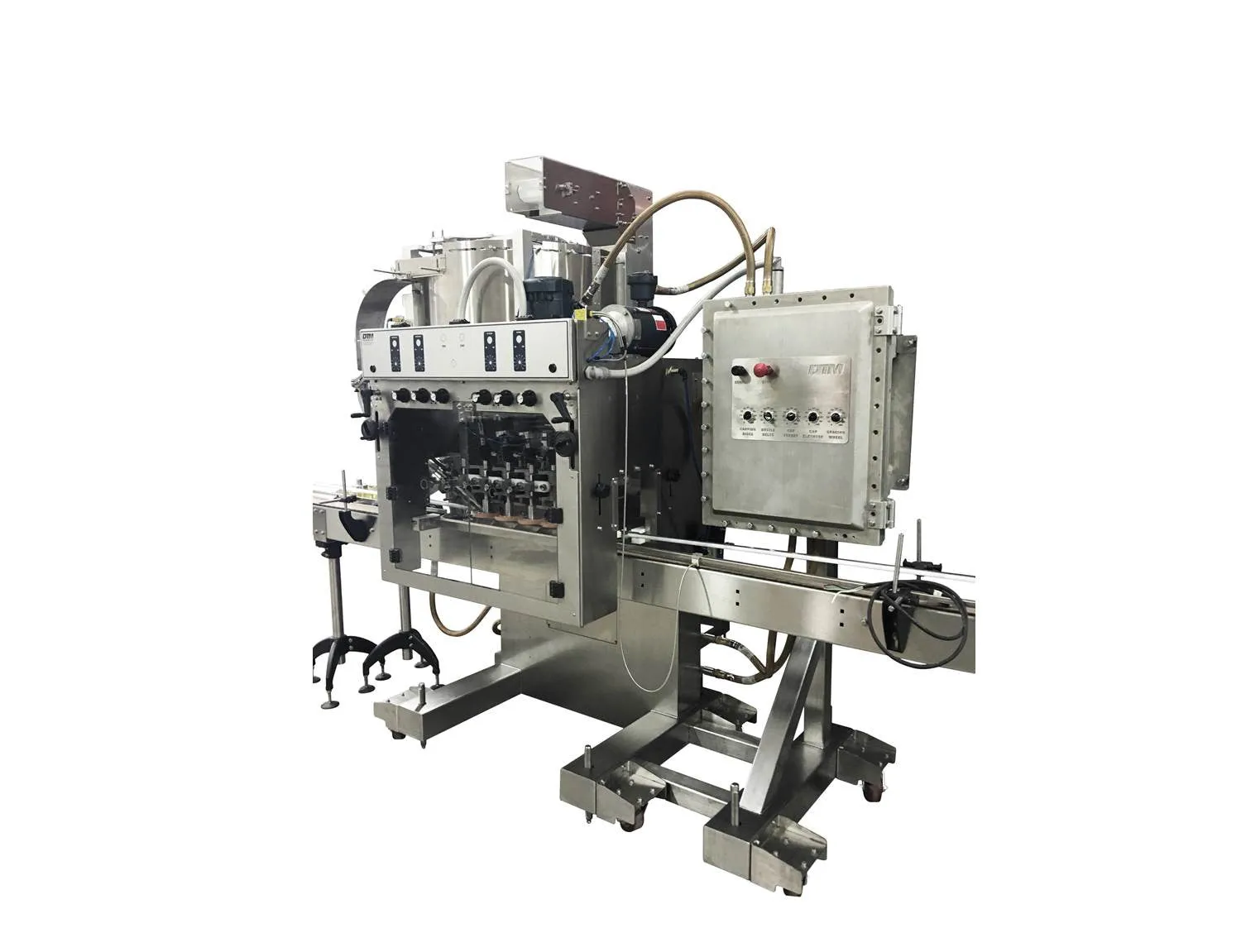

ACASI Inline Bottle Capper with Centrifugal cap feeder
Model TruCap-X-Cent

Starting Prices:
 4 spindle in line capper with centrifugal cap sorter:

 6 spindle in line capper with centrifugal cap sorter:

 8 spindle in line capper with centrifugal cap sorter:

Tightener Features:

• Heavy duty 304 stainless steel welded C frame for easy mounting over existing conveyors.
• Heavy duty linear carriage system for height adjustability
• All shafts and threaded rods manufactured in 304 stainless steel
• Heavy duty casters standard
• No change of parts needed for a wide range of containers
• Front covers with safety interlock switches standard
• Top driven to insure no product spillage into drive assembly
• Adjustable height to accommodate containers from 1 inch to 14 inches tall (Optional power height adjustment)

Capping discs features:

• 4, 6, or 8 spindle machine configurations available, single gear box driven
• Independent spring loaded capping discs for better torque and misalignment forgiveness.
•  Torque is able to be adjusted while the machine is running (When pneumatic clutch option is purchased)
•  Clutches located away from capping discs to avoid corrosion
•  Heavy duty gear driven mechanism, no belts used for power transmission
•  Adjustable speed 1/2 Hp drive motor for bottle capping discs
•  Optional second drive motor to rotate the first set of capping discs on the opposite direction
• Bottle capping head assembly manufactured in 316L stainless steel 95% of manufactured parts are in stainless steel, or FDA approved polymer materials
•  Independent adjustment for front or back capping discs
• Bottle capping disc position is adjustable while the machine is running, without opening the safety covers.
•  Fully adjustable for caps sizes ranging from 8 mm to 130 mm in diameter

Bottle belts features:

• Bottle belt width adjusted via front knobs
• Bottle belt height adjusted via front knobs
• Heavy duty gear drive mechanism, no belts used for power transmission.
• Adjustable speed heavy duty 1/2 Hp, motor gearbox
• Bottle belt assemblies can be adjusted independently for width, taper, and angle to accommodate various sizes and styles of containers.
• Optional double belt assembly with independent height and angle adjustment

Centrifugal type cap feeder features:

• Construction in stainless steel.
• 32 inch diameter feeding disc ‐ ramp assembly.
• Cap rejecting by photoelectric sensor.
• Cap by demand controlled by photoelectric sensor.
• Standard 4 pieces slotted cross for easy tooling adjustment.
• Easy changeover for caps from 10mm to 90mm in diameter.
• Easy changeover for caps from 0.125 to 2.5 inches in height.
• Sorter mounted on machine, no need for independent height adjustment.
• Includes filter pressure regulator.
• Flow controls on all air hoses.
• Adjustable vibration system on cap hopper.
• Force provided by 1/3 Hp DC gear motor.
• Speed control by potentiometer.

Cap hopper features:

• 3 Cubic feet stainless steel deposit.
• Vibrator with independent control mounted on cap hopper.
• Low friction limit switch for cap level sensing on centrifugal cap feeder.

Electric and pneumatic requirements:

• 110 Volts, Single phase, 50/60Hz, 15 Amps.
• 10 CFM @ 80 p.s.i.
