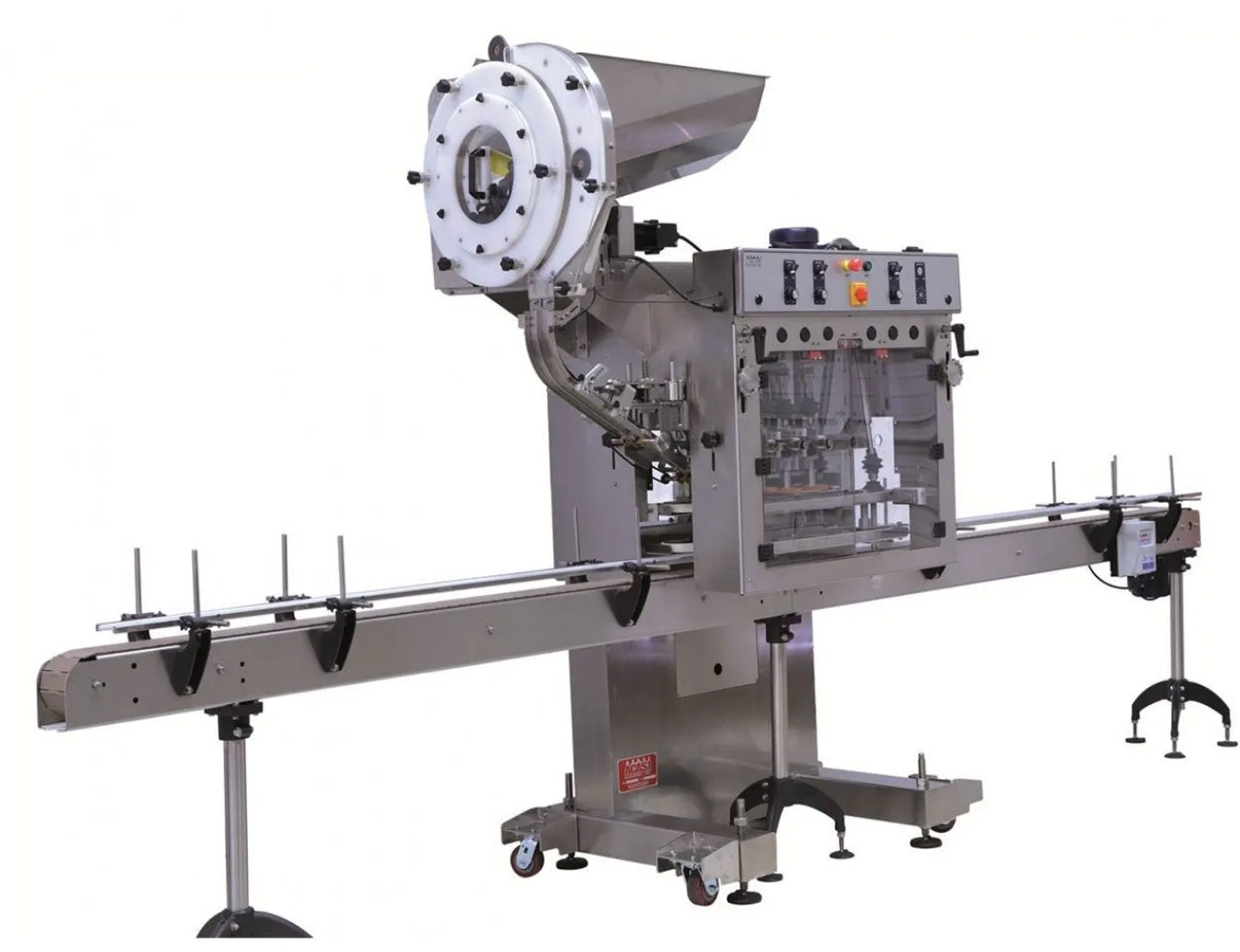

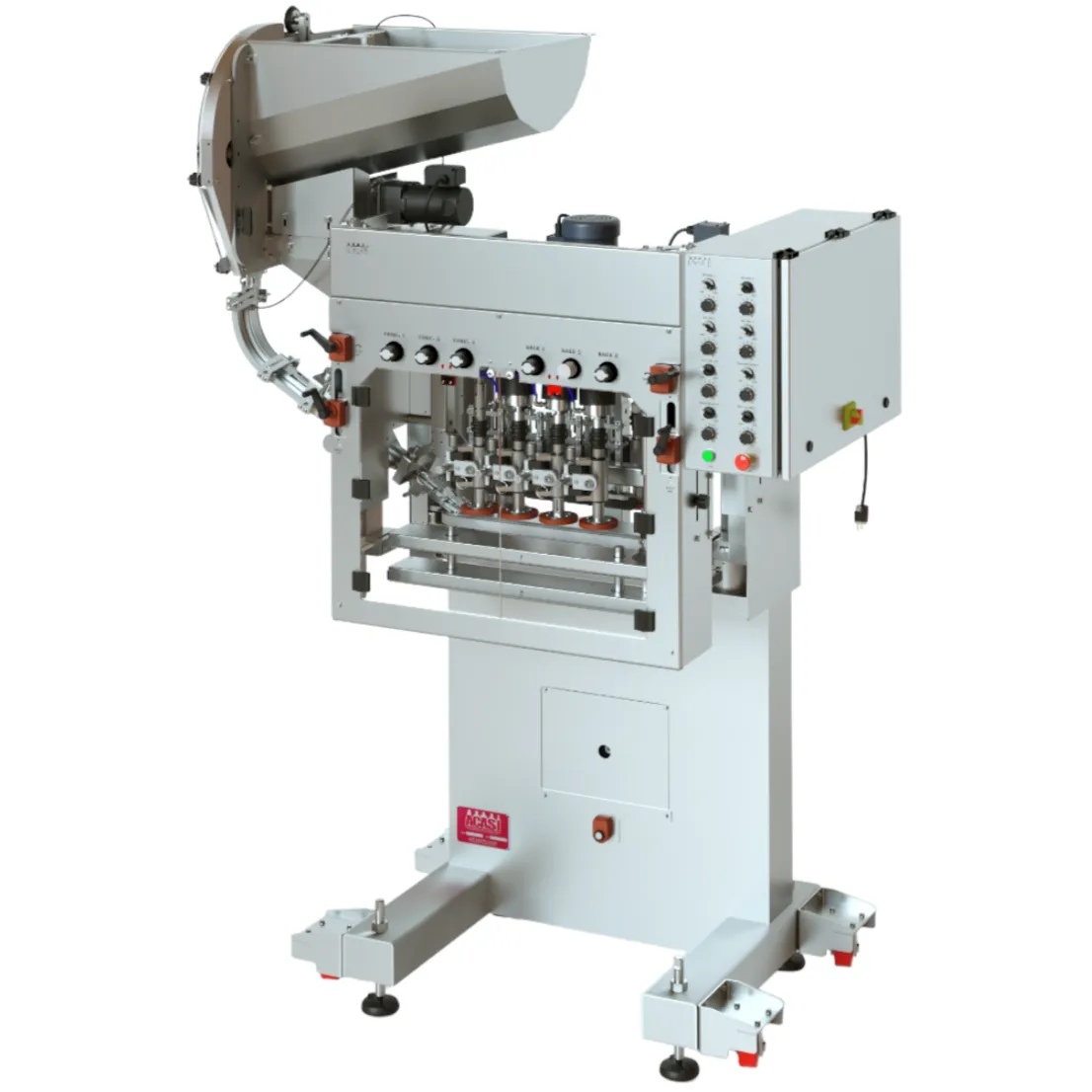

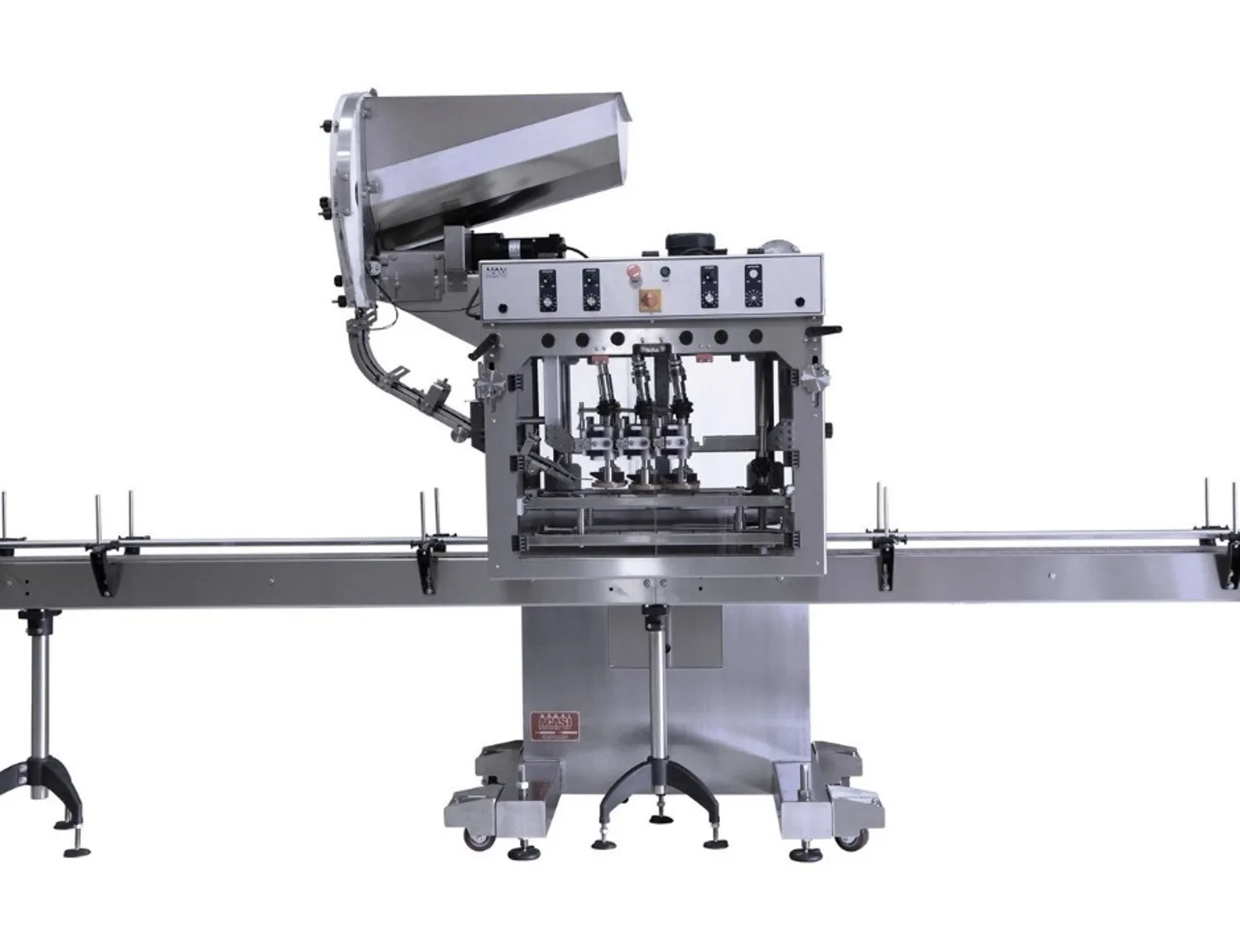

ACASI Inline Bottle Capper with Vertical wheel cap feeder
Model TruCap-X-Vert

Starting Prices:

Tightener Features:

• Heavy duty 304 stainless steel welded C frame for easy mounting over existing conveyors.
• Heavy duty linear carriage system for height adjustability
• All shafts and threaded rods manufactured in 304 stainless steel
• Heavy duty casters standard
• No change of parts needed for a wide range of containers
• Front covers with safety interlock switches standard
• Top driven to insure no product spillage into drive assembly
• Adjustable height to accommodate containers from 1 inch to 14 inches tall (Optional power height adjustment)

• 4, 6, or 8 spindle configurations available, single gear box driven
• Independent spring loaded bottle capping discs for better torque and misalignment forgiveness.
• Torque is able to be adjusted while the machine is running (When pneumatic clutch option is purchased)
• Clutches located away from capping discs to avoid corrosion
• Heavy duty gear driven mechanism, no belts used for power transmission
• Adjustable speed 3/4 Hp drive motor for capping discs
• Optional second drive motor to rotate the first set of capping discs on the opposite direction
• Capping head assembly manufactured in 316L stainless steel 95% of manufactured parts are in stainless steel, or FDA approved polymer materials
• Independent adjustment for front or back capping discs
• Capping disc position is adjustable while the machine is running, without opening the safety covers.
• Fully adjustable for cap sizes ranging from 8 mm to 130 mm in diameter

• Bottle belt width adjusted via front knobs
• Bottle belt height adjusted via front knobs
• Heavy duty gear drive mechanism, no belts used for power transmission.
• Adjustable speed heavy duty 3/4 Hp, motor gearbox
• Bottle belt assemblies can be adjusted independently for width, taper, and angle to accommodate various sizes and styles of containers. Optional double belt assembly with independent height and angle adjustment

• Mechanical bottle cap sorting, requires no fine tuning
• Once setup, caps will only be dispensed in the correct orientation
• 24 inch diameter feeding disc
• Interchangeable sorting rings
• Easy changeover for caps from 15mm to 53mm in diameter, with appropriate tooling
• Sorter mounted on machine, no need for independent height adjustment
• Driven by 1/4 Hp DC gear motor
• Speed controlled via potentiometer
• 3 Cubic feet integrated cap hopper

• 220 Volts, Single phase, 50/60Hz, 18 Amps.
• 5 CFM @ 80 p.s.i. (Only required with pneumatic clutches)
