- Bluetooth adapter for Topcon Sokkia data download transfer
- Bluetooth adapter for Topcon DT-102, GPT 3005, GPT-3000N, gts 310, gpt 1001 total station
- Bluetooth adapter for Sokkia SET 610 510 600 500, SET 530R3 630R SET230R/R3 SET330R/R3 NTS332R6M total station and SDL30 SDL50 digital level

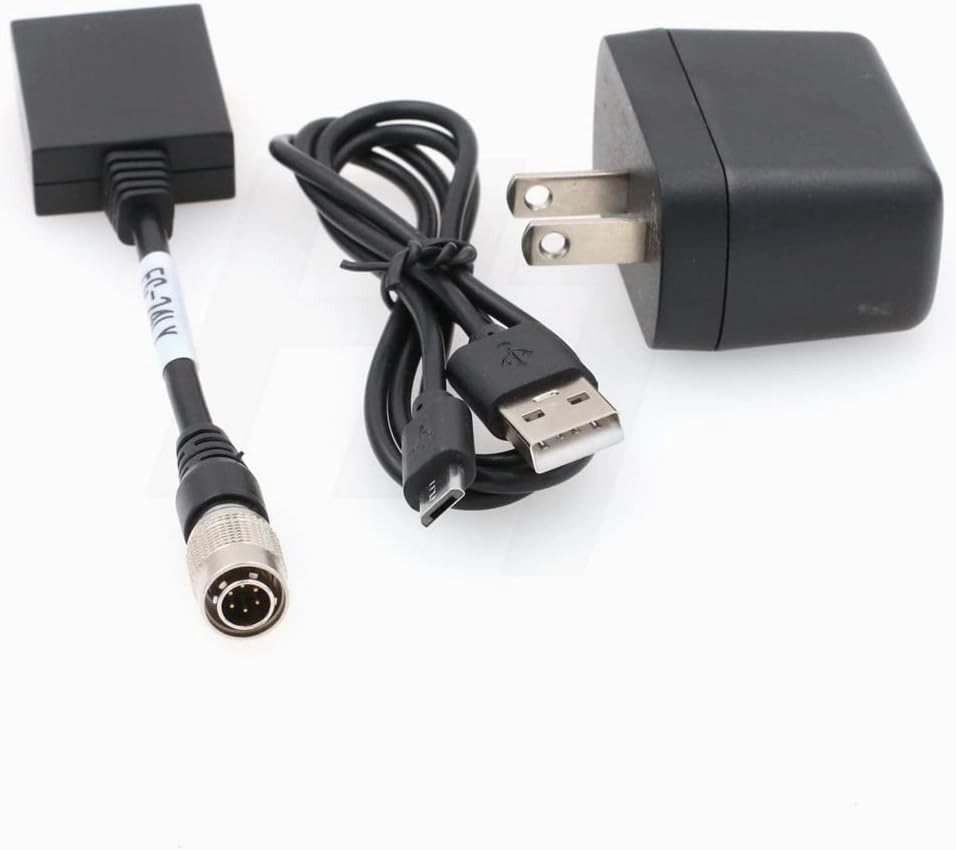

- Compatible for Hirose 6 pin male connector to Bluetooth adapter, with US power plug to USB cable
- Original code is 1234. Inside with a rechargable Li-ion battery. Communication distance: up to 30 meters
Bluetooth adapter for Topcon total station to PC
User Manual:
1. Power Bluetooth battery with adapter (The red light is on - it is charging)
2. Set the communication parameters of the total station through menu
Baud rate: 9600ps
Check/Parity: None
Data bits: 8 / Serial Port: COM 8
Stop bit: 1
ACK: Standard
CR, LF: Open
Record type： REC-A
3. Insert the connector of the Bluetooth adapter into the serial port of the total station and turn on the Bluetooth switch.
4. Open the surveyor APP on the mobile phone, click Bluetooth, select the instrument model to be topcon1, serial port delay 0.5 seconds, click scan, a new device appears: BT18, select it, enter the pairing password 1234
5. Connect to Bluetooth, click test
Note：
The blue light flashes - Bluetooth is not connected, blue light
The blue light is always on - Bluetooth is successfully connected
