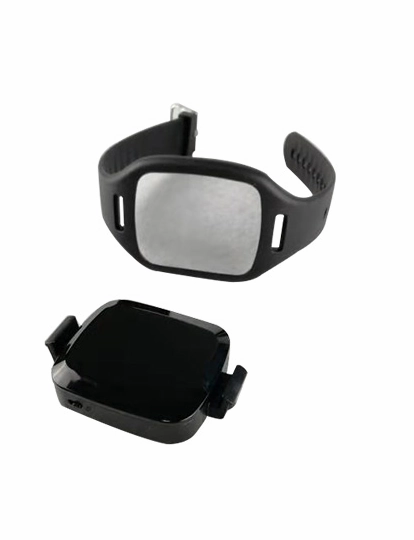

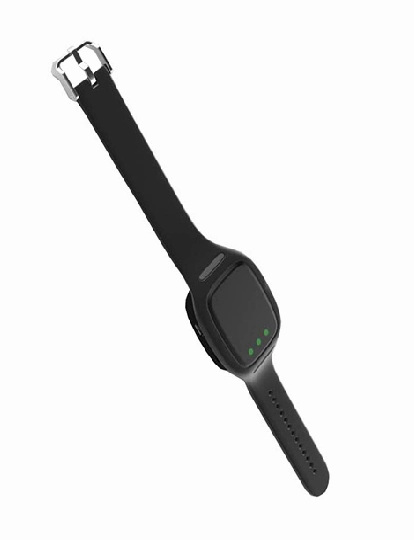

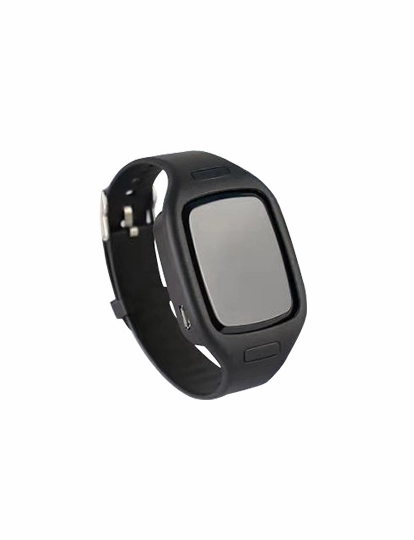

1.Adopt a portable wristband design, small card reader, watch size, fashion match;
2. Support system：Windows、IOS、Android、Mini Program;
3. Can be flexibly transformed into a wristband watch, telescopic rod reader, chest-mounted reader, desktop reader;
4. Using ABS PC engineering plastic, stylish and durable.
Specification
Performance Parameter | |
Model# | VH-B73 |
Packing Size | 122*105*46mm |
Protocol | ISO18000-6C |
Support system | Windows、IOS、Android、Mini Program |
Communication interface | BLE4.0、USB |
Read distance | 50cm（related to tag） |
Electric Parameter | |
Battery capacity | 500mA |
Charging method | USB 5V/0.5A，charge for 2 hours |
Work time | Work continuously for 3 hours, can inquire 30,000 times |
Material | ABS PC engineering plastic |
Operating temperature | -20℃~60℃ |
Working Status Indicator | |
Switch | Toggle switch |
Middle light | ① Normal work: green light is on ②The device is abnormal: the light is off ③ Low power: the green light keeps flashing slowly (low power alarm, please charge as soon as possible) ④The battery power is extremely low: the green light keeps flashing fast (Stop using at low power, unable to read tag) ⑤ Charging: red light is on ⑥ Charging completed: the red light goes out |
Left light | ① Bluetooth connection is successful: the green light is on ②Bluetooth data transmission: green light flashes quickly |
Right light | Operation tag success: green light flashes |
