- This flexible neoprene impeller 10077K-SHW is designed to fit on Sherwood marine, a 1/2 inch pump driveshaft and should only be used to pump water. Compitable with Onan 132-0137 132-0375 132-0379 132-0498 132-0499 541-1519 Westerbeke 11764 33100 Sierra 23-3310 Crusader 727103 Chris Craft 16.80-90047 CEF 500166. More detailed information please see description.
- IMPELLER SIZE: Overall Diameter 2-1/4” (57mm), Width: 25/32” (20mm), Shaft: 1/2 inches (12.7mm), 12 blades Neoprene Impeller and Brass Insert. Package included impeller, Gaskets and O-ring. More detailed information please see description.
- WINGOGO neoprene flexible impellers suitable for marine water-pumping duties such as engine cooling, water transfer, wash down and bilge water pumping purposes, work for fresh or sea water.Flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.
- You should replace your flexible pump impellers at least once annually or sooner depending on the engine duty. It is one of the most vital components of the engine cooling system and should always be treated as such. Always carry spare impellers on board before boating sports
- To find the correct impeller kit for your application, it is VERY IMPORTANT to check pump type or impeller part number before purchase. You can leave us messages e.g. pump model, horsepower or year etc. if you're not sure. We're pleasure to help you.
WINGOGO Inboard Water Pump Impeller for Sherwood Pump 10077K-SHW
It has 12 impeller blades, a key drive and is supplied as an impeller kit, with O-ring and 3 gaskets.This impeller kit is suitable for use with many Sherwood pumps.
Cross reference:
Sherwood 10077K
Onan 132-0137 132-0375 132-0379 132-0498 132-0499 541-1519
Westerbeke 11764 , 33100
Crusader 727103, Chris Craft 16.80-90047,
Sierra 23-2000 23-3302 23-3310
Mallory 9-45716 CEF 500166 JMP 7110 DJ Pump 08-32-1201
SPECIFICATION:
Diameter: 2-1/4” (57mm)
Width: 25/32” (20mm)
Shaft: 1/2 inches(12.7mm)
Silhouette: 12 blades
Drive: 3/32" key drive
APPLICATION:
Sherwood M10261G pumps used in Chris Craft Model B engines.
Sherwood M10095G & N10360GX pumps used in Chris Craft Model 283 engines (Chris Craft 16.80-10003).
Sherwood E20 pumps used in Palmer I.H.60 engines.
Sherwood Q10840 pumps used in Gray Marine Gov engines (Gray Marine G80561).
Sherwood G701-01 pumps used in Onan 6.5-10 KW engines (Onan 132-0358).
Sherwood Q10805G pumps used in Medalist Model OK-OL engines.
Sherwood E05 pumps used in Light Plants engines.
Sherwood A20 pumps used in Westerbeke Pilot 10-20 engines.
Sherwood R30G-1-01 pumps used in Westerbeke diesel 6 cylinder engines (Westerbeke 24102).
Sherwood H70 pumps used in Westerbeke Gov Life Boat engines (Westerbeke 24143).
Sherwood R30G pumps.

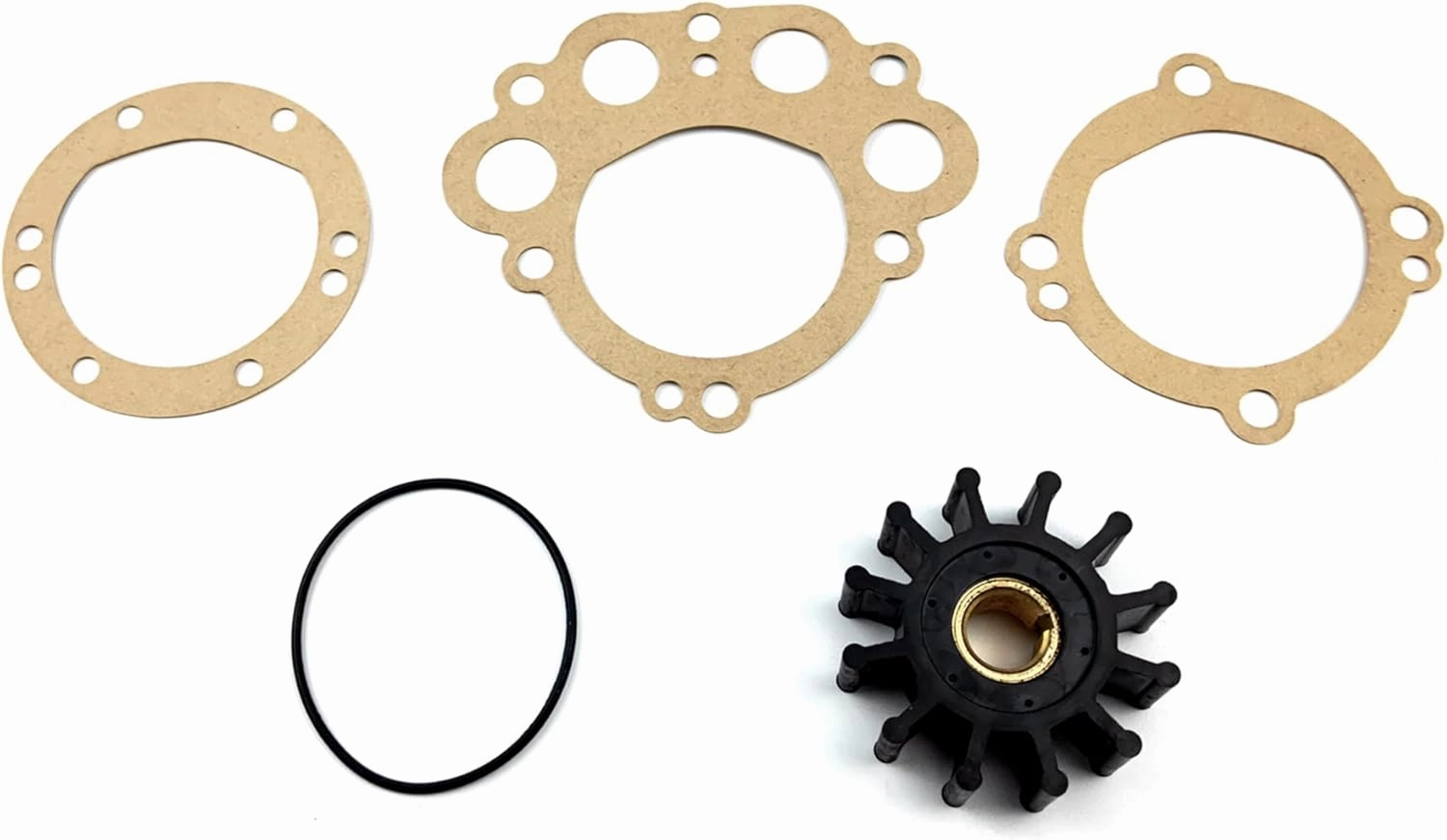

PACKAGE INCLUGED:
1X Impeller
1X O-Ring
3X Gasket
NOTE:
It is VERY IMPORTANT to check outboard model, serial number, year and horsepower before purchase. Ask us any questions if you are not sure, we are pleasure to help you.
