- 【Six Slots Independent Charging】 6 channels works independently , Each channel can be set to different working modes,compatible with 19 types of rechargeable battery .It supports charging for 4*AA batteries or 4 AAA batteries in one lot,It coves varies rechargeable battery size to 26700 battery the Max.(*Support battery AAA,AA,10440,10500,12500,13500,14500,14650,16650,17650,17670, 18650,18700,20650,20700,21700,22650,26650,26700)
- 【USB Type-C import】36W maximum, DC 5~12V,Support QC2.0/3.0 and PD . charging faster.Laptop USB port , 5V 1A can be used as input power supply.
- 【On-time monitoring】On-time charging, discharging , battery type, charging percentage, charged amount, charging time,Battery IR, On-time temperature,voltage and current, and capacity variation curve.
- 【Multi Protection】Auto adjustment on charging parameters for best charging performance and multiple protection on batteries.Extend battery life with more reasonable charging and discharging operation.
- 【Mute fan &Gilding spring】C4 EVO's Mute fan,it improve the problem of the noise of C4's fan. Gilding spring,it extend the service life of C4 EVO.

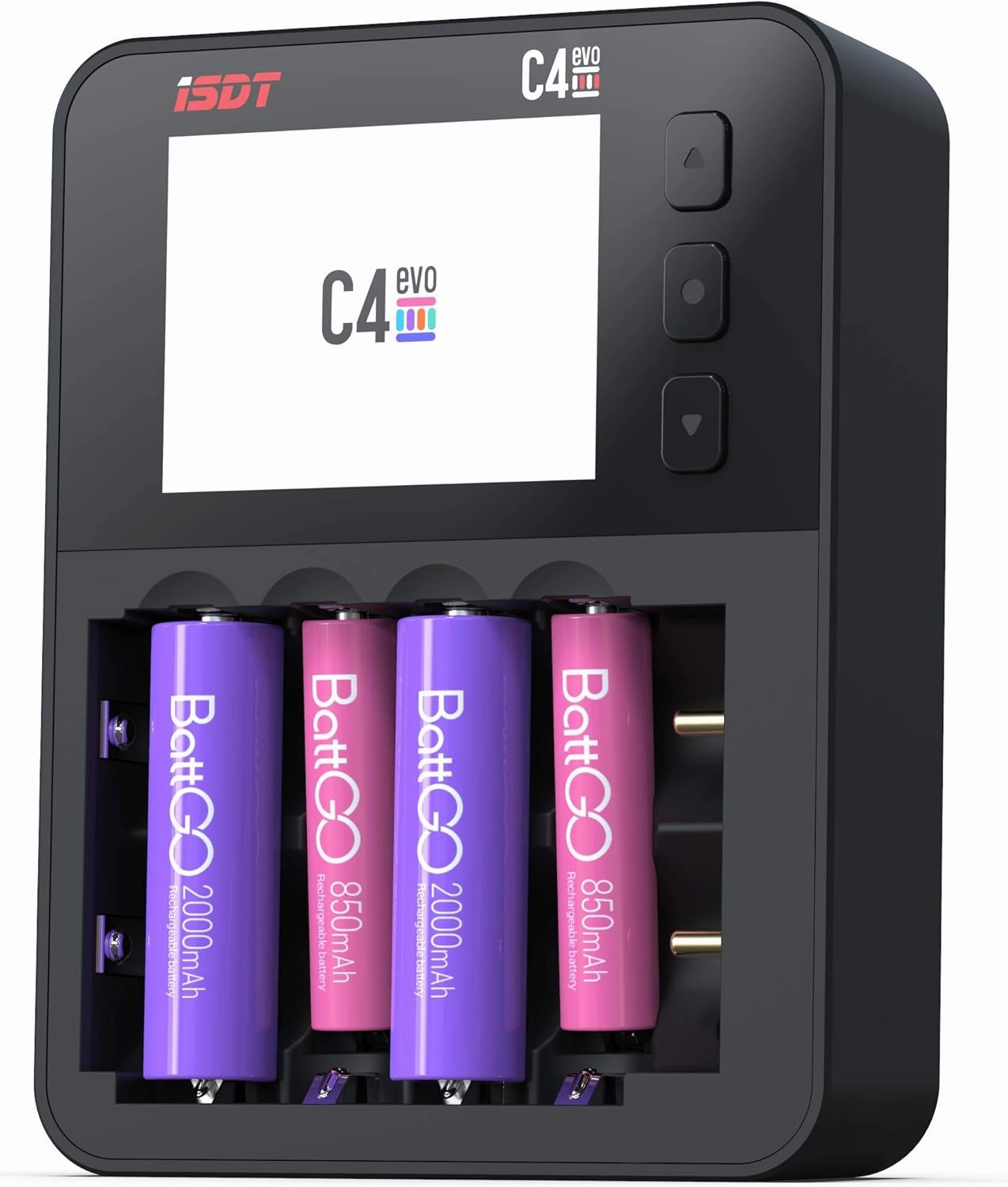

Model:C4 EVO
Battery Count:1~4Cylindrical battery
Battery Size:AAA,AA,10440,10500,12500,13500,14500,14650,16650,17650,17670,18650,18700,20650,20700,21700,22650,26650,26700
Support battery type:Li-Lon, LiFe, LiHv，NiMH, NiZn, Eneloop
Operating Voltage Range:5～12V（Support QC, PD protocol）
Charge Current Range:0.1～3.0A（Horizontal），0.1～1.5A（Vertical）
Discharge Current Range:0.1～1.5A（Horizontal），0.1～1.0A（Vertical）
Operation Modes:Charge, Discharge, Store, Destroy, Cycle, Activate, Analyze
Display:320×240 IPS LCD
Beep Sound:Multi-tone
Temperature Sensors:6 for inner
Working temperature:0~40℃
Voltage Measurement:±10mV
Current Measurement:±10mA
Standby Current Drain:<0.05mA/battery
External Ports:USB power output（Type-C）
Firmware Update:Support
Reverse Polarity Protection:Vertical physical anti-reverse connection,horizontal hardware anti-reverse connection
Overheating Protection:Support
Overcapacity protection:Support
Package Included:
1x ISDT C4 EVO Charger
1x TYPE-C Cable(Adapter/Power supply is NOT included!!)
