- VERSATILE EXIT-ONLY SIGN: The Lithonia Lighting Quantum LED Exit Sign is ideal for applications requiring attractive, quick-installation exit signs and low energy use; It includes an additional faceplate to convert from single-sided to double-sided exit

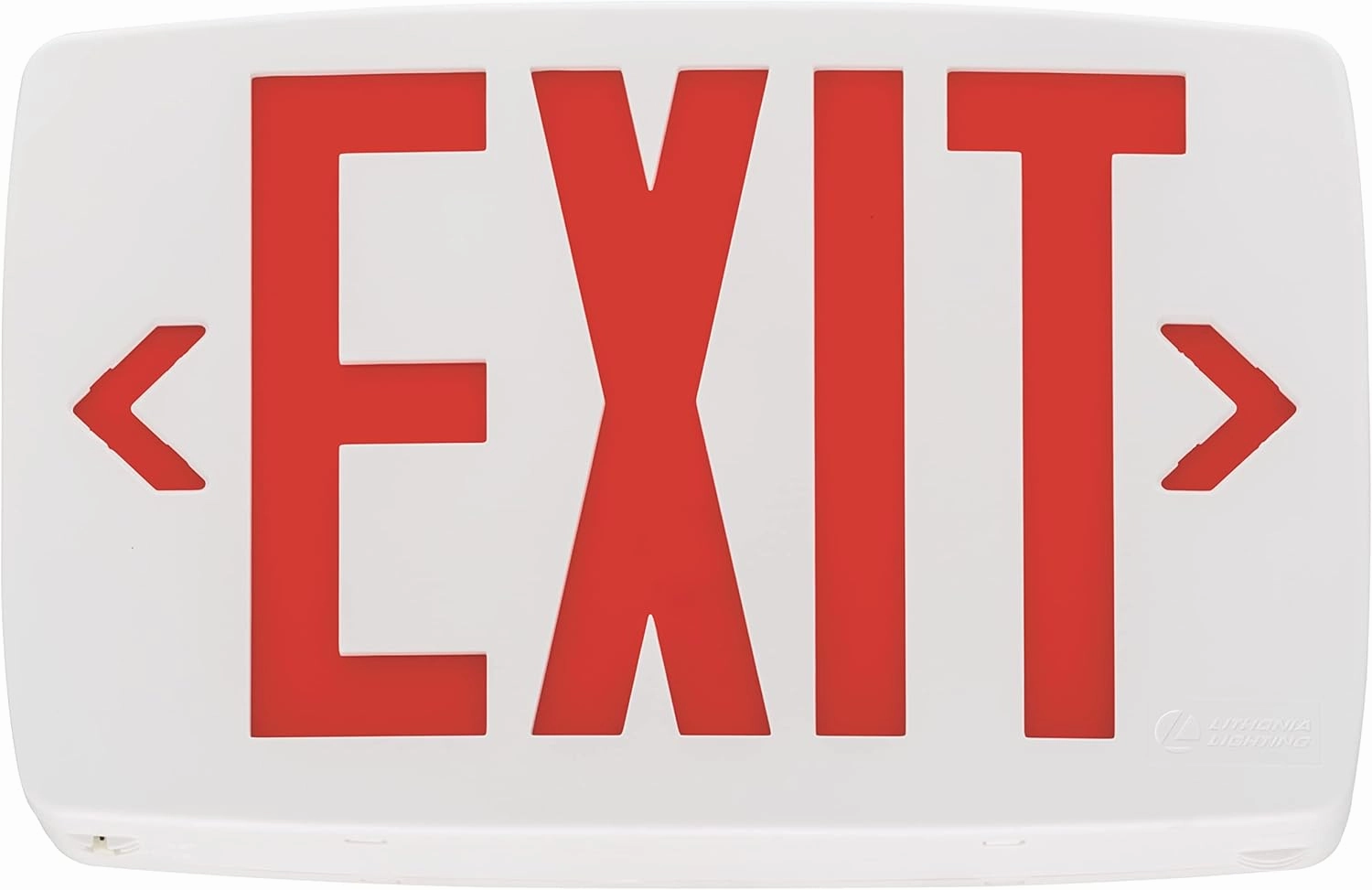

- BRIGHT RED LED EXIT SIGN: Letters are 6" high with 3/4" stroke, with 100 ft. viewing distance rating; The exit sign provides uniform graphics illumination without shadows or hot spots; Directional chevron inserts are easily removed and reinserted
- ELECTRICAL DETAILS: Constant-current series charger minimizes energy consumption and provides low operating cost; The typical life of the exit LED lamp is 5 years; This version is AC-only with no battery backup
- EASY INSTALLATION: Unibody housing snaps together easily; Faceplate and back cover are interchangeable; The LED emergency exit sign includes a mounting canopy for top or end mount; Back mount standard for single face only

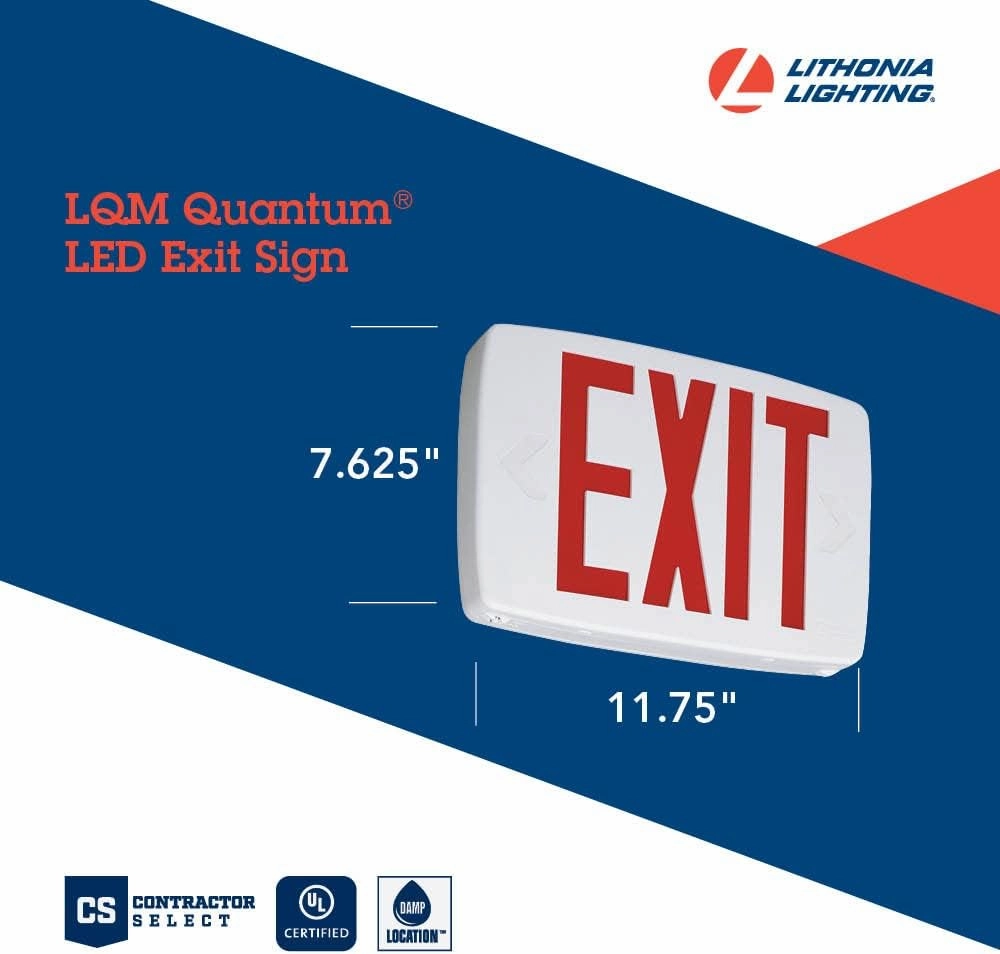

- SPECIFICATIONS: UL Damp Location Listed, Title20, Meets UL924, NFPA 101, NEC & OSHA illumination standards, meets all applicable FCC Title 47, Part 15, Subpart B requirements; Dual voltage 120/277V; Dimensions 11.75" x 7.63" x 2"; 5-year limited warranty
Product Description

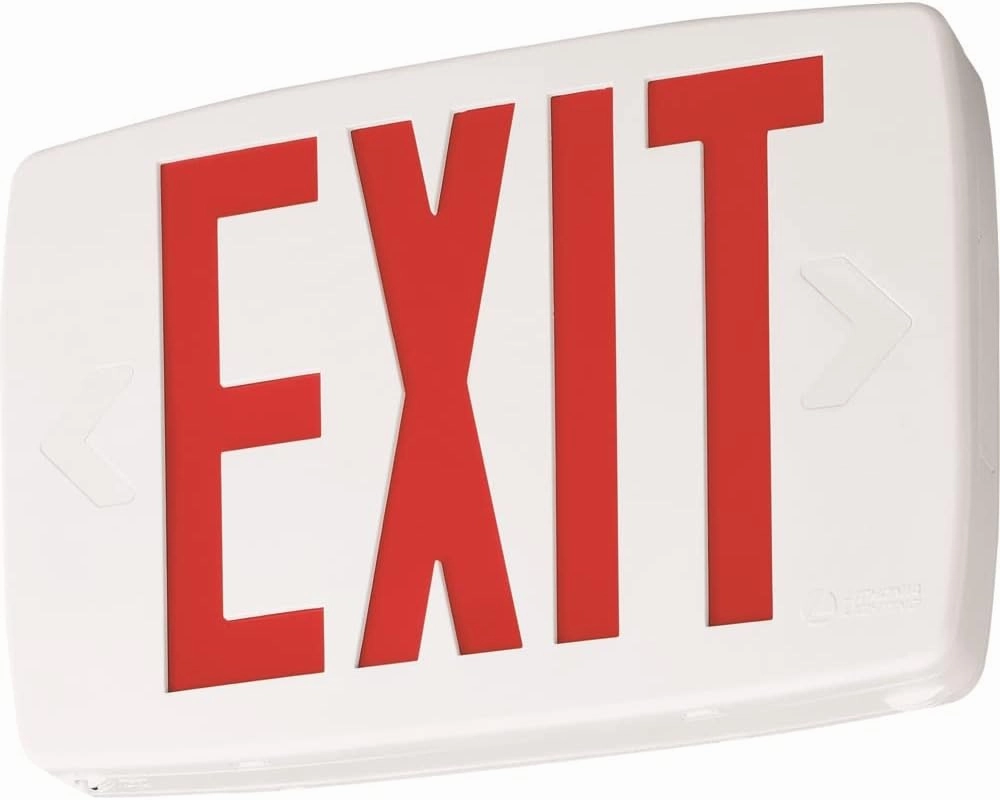

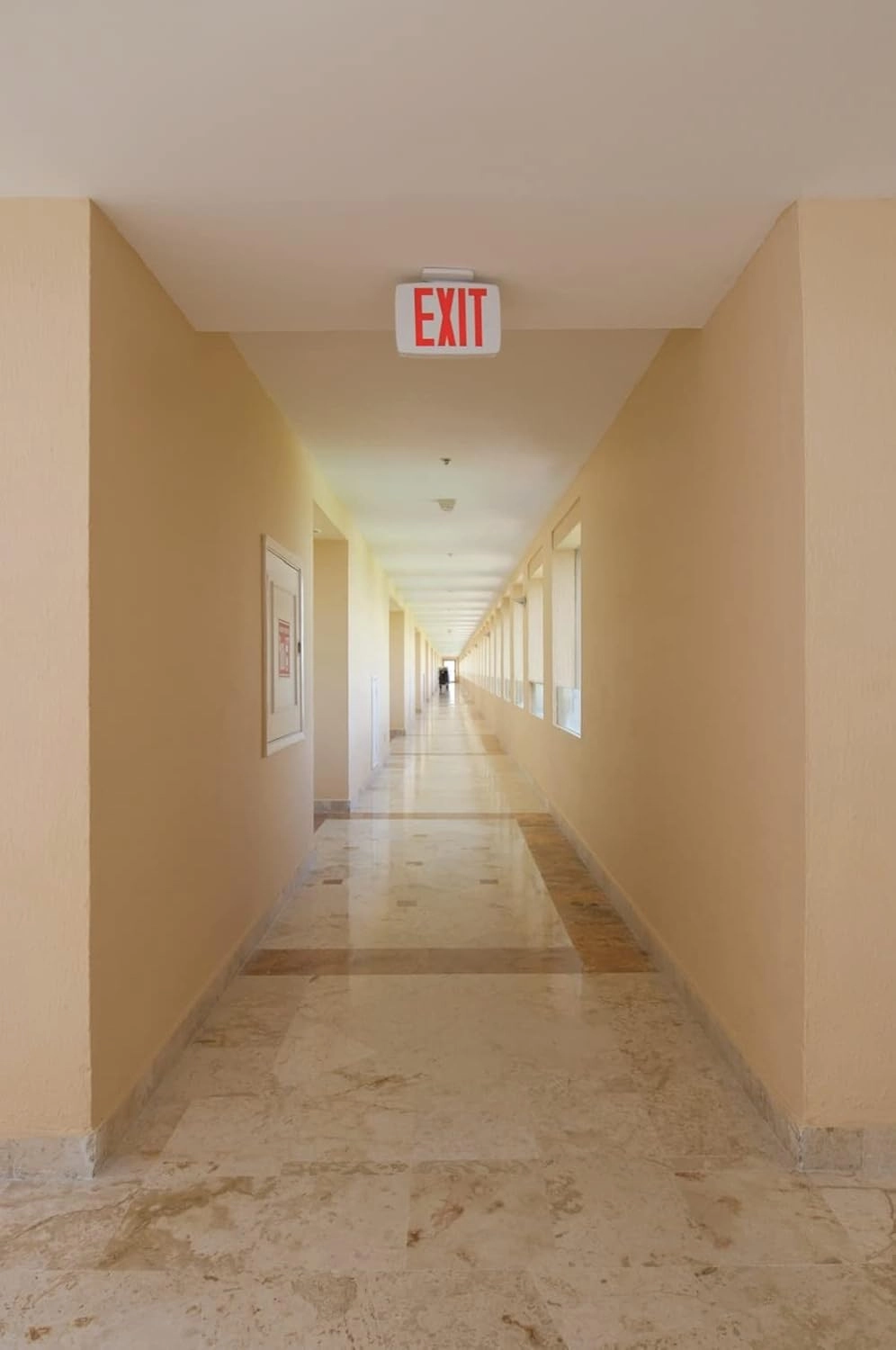

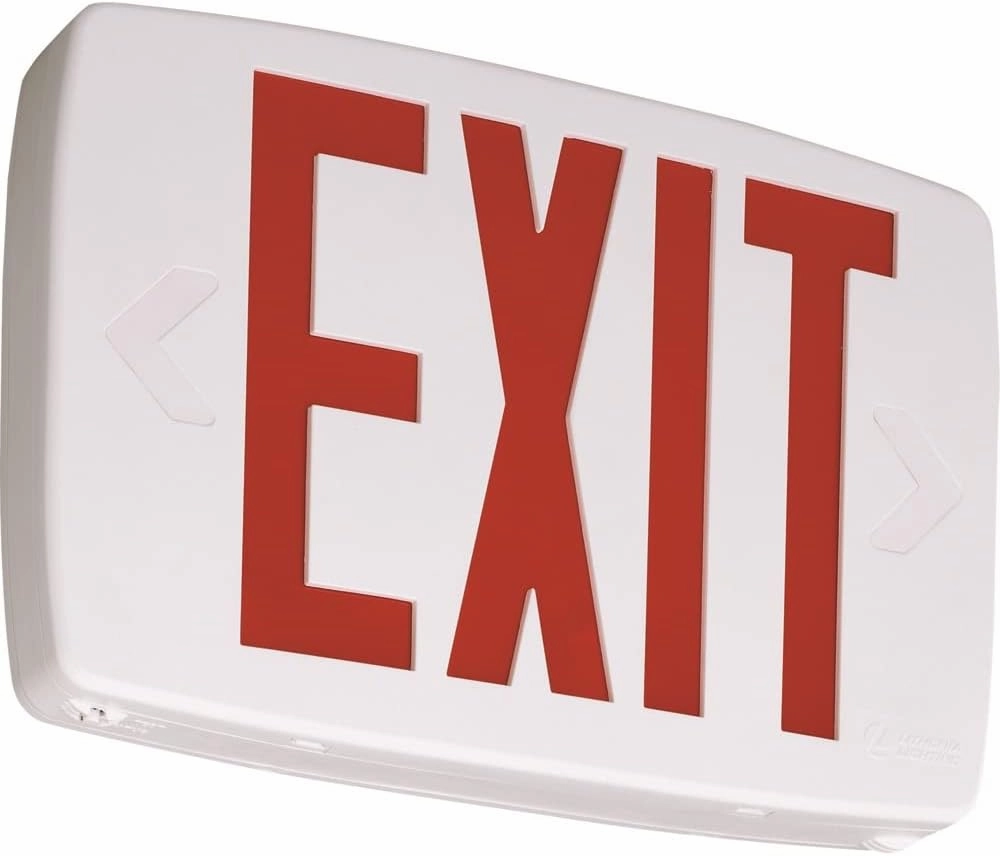

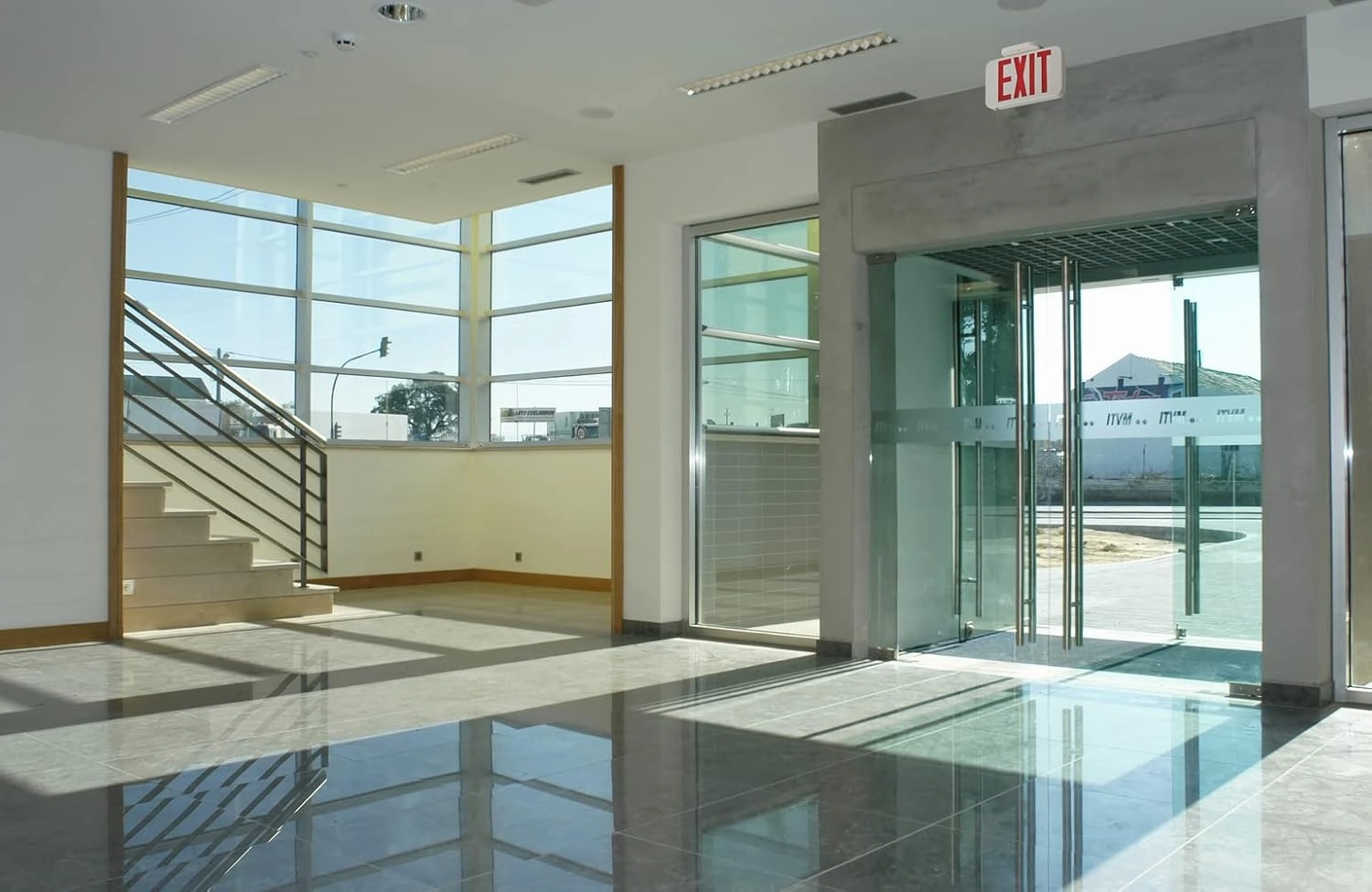

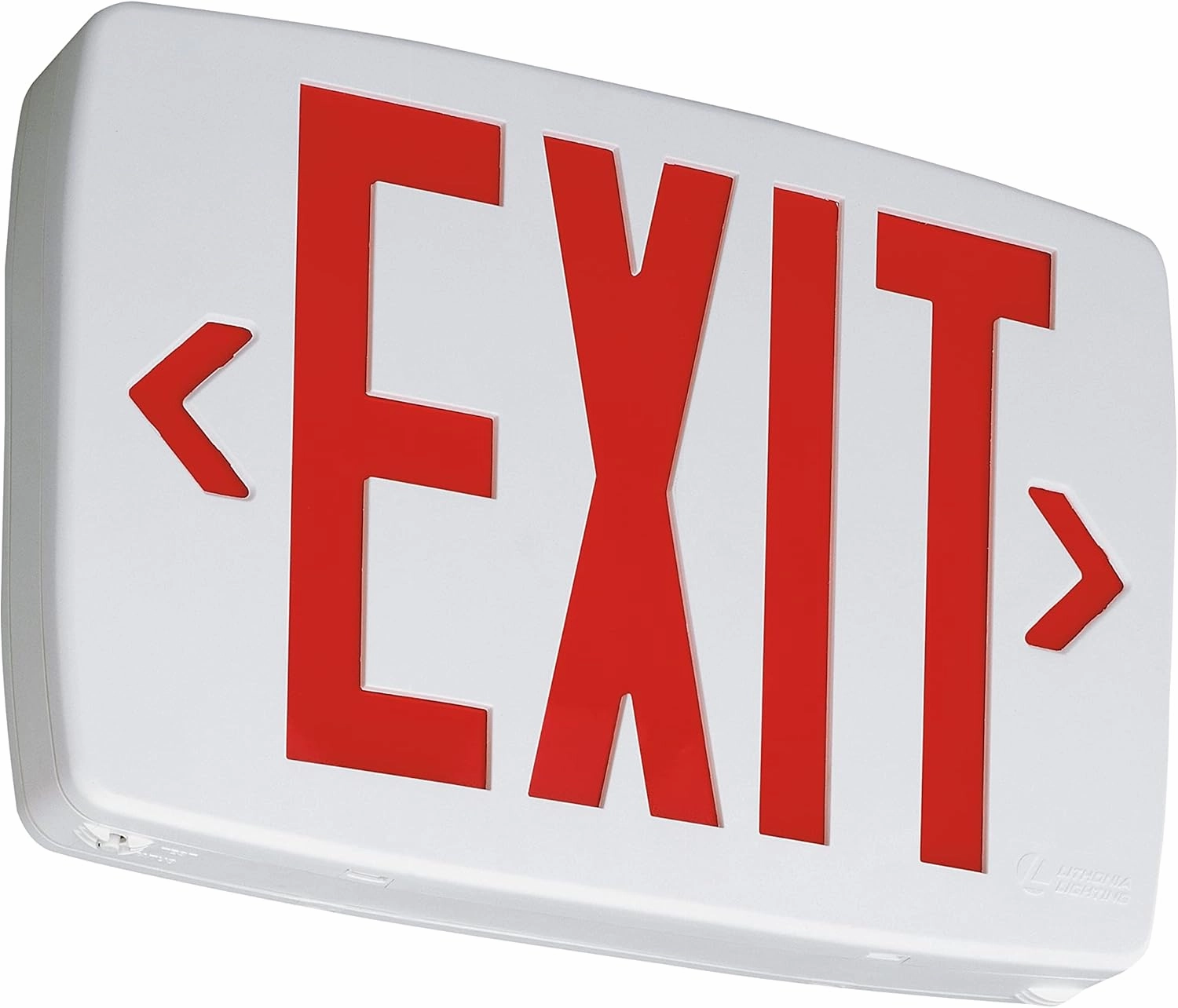

The LQM Exit Sign from Lithonia Lighting Quantum family delivers next level performance for a wide variety of commercial indoor applications. The LQM Exit Sign raises the bar for emergency lighting. It comes equipped with red EXIT letter coloring. This version operates on AC power only with no battery backup. The LQM emergency exit only sign also features a “quick mount” canopy that allows the choice between either top, back, or end mount while leaving no hardware visible from the floor (canopy is provided). Additionally, it ships standard with an extra faceplate to quickly convert the exit sign from a single to a double-faced exit making it perfect for offices, schools, hospitality, health care, multi-family and many other applications.
From the Manufacturer
Engineering-grade thermoplastic housing with stencil faced white housing and red letter, is impact-resistant, scratch resistant, and corrosion-proof.
