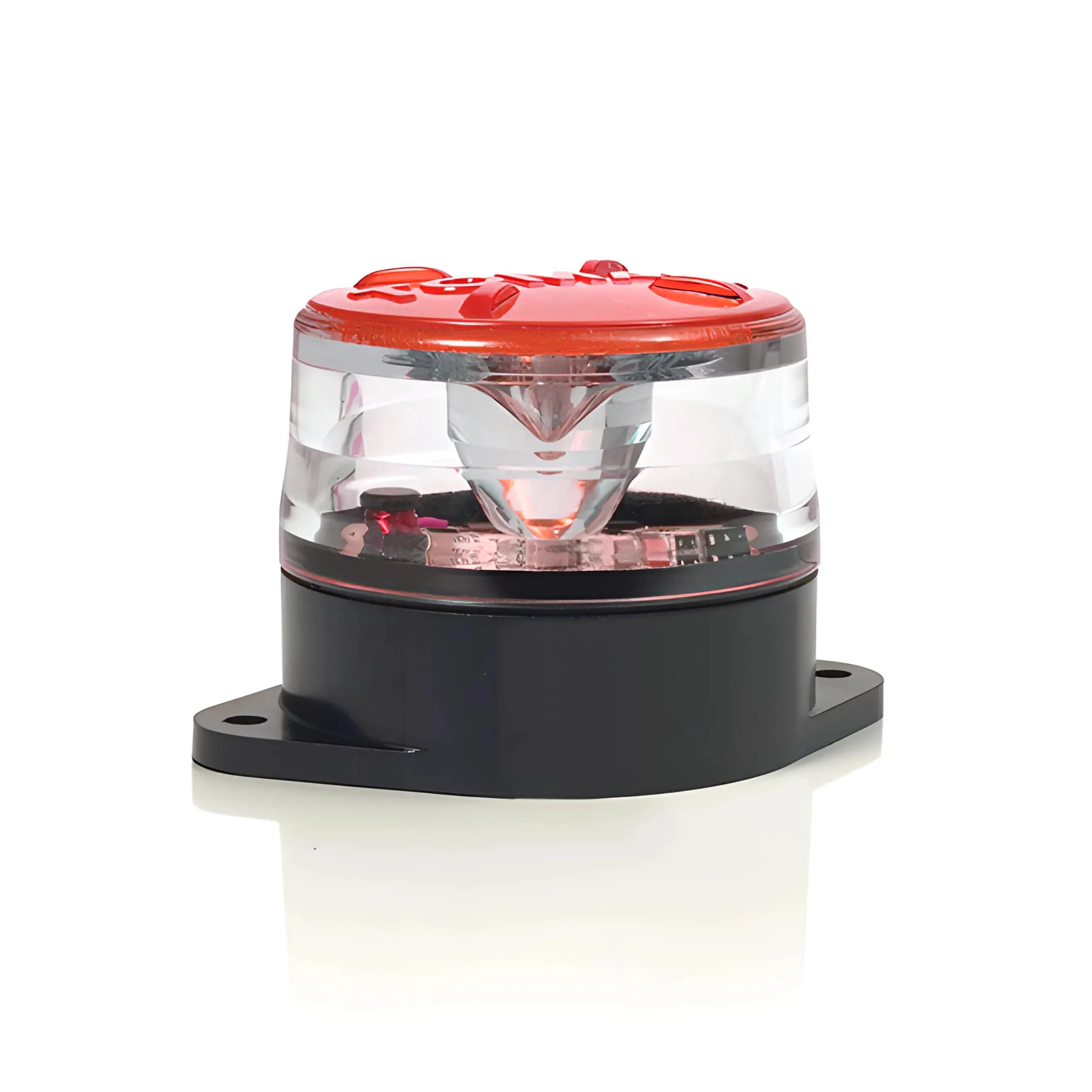

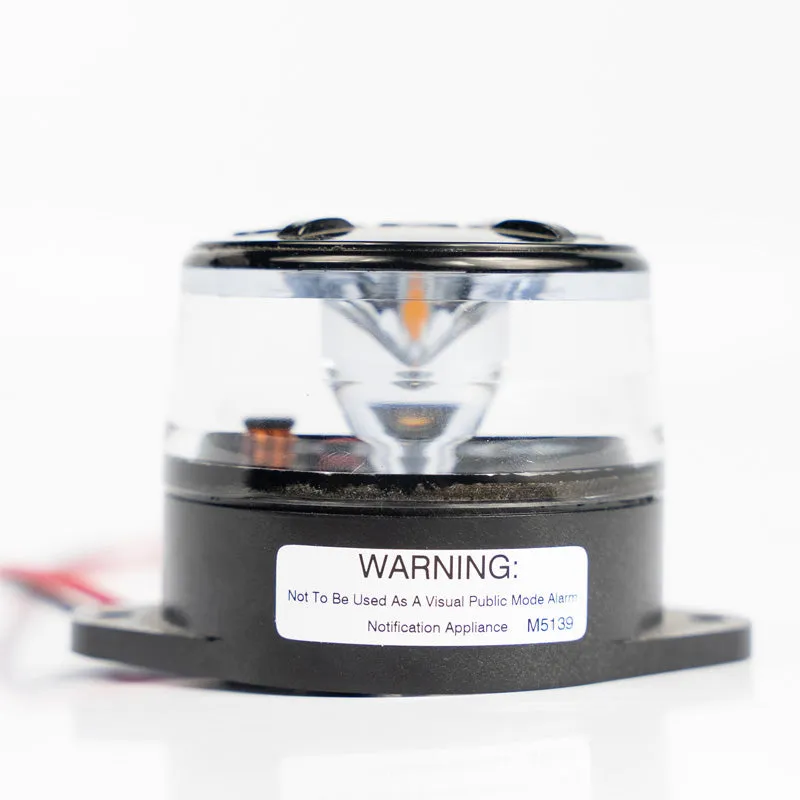

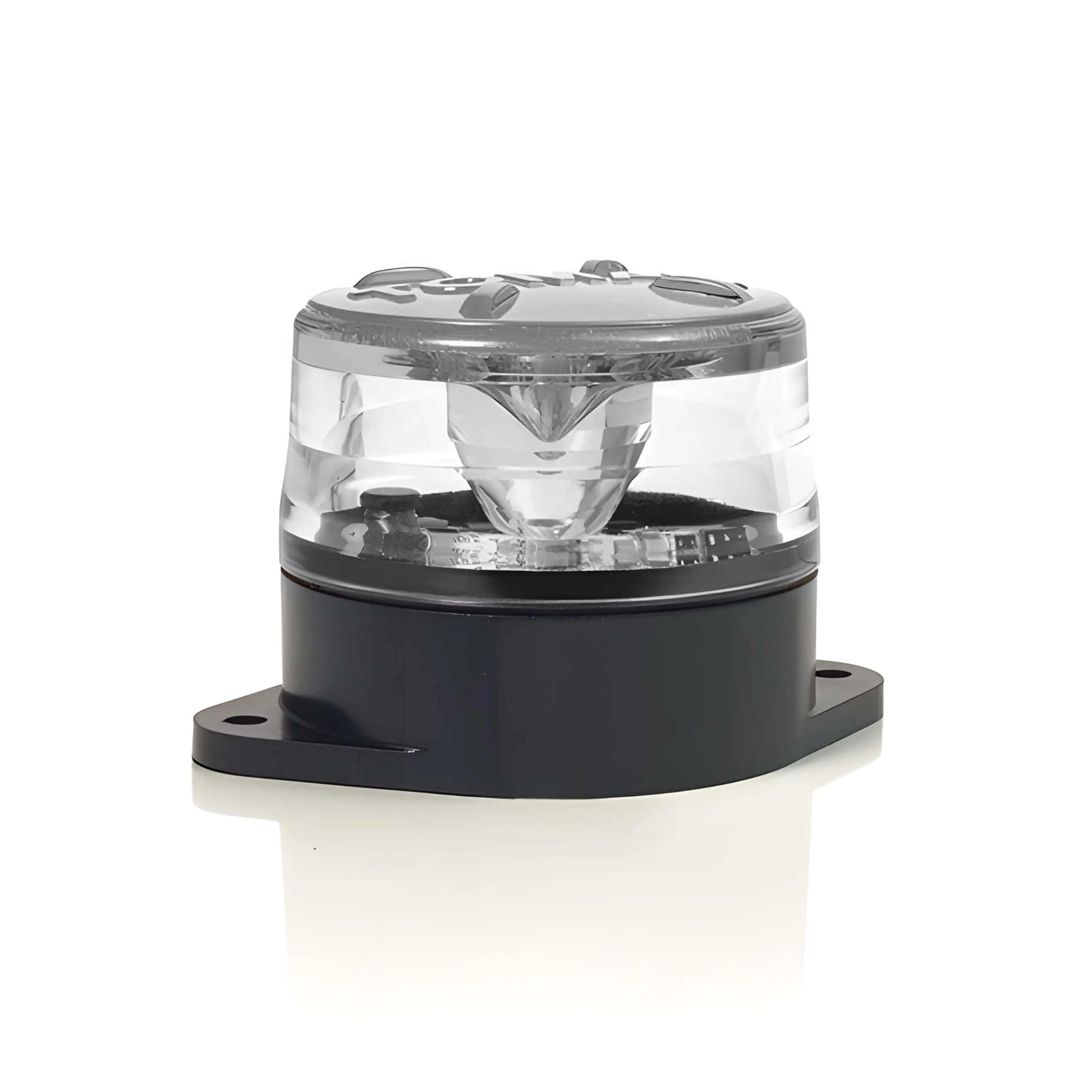

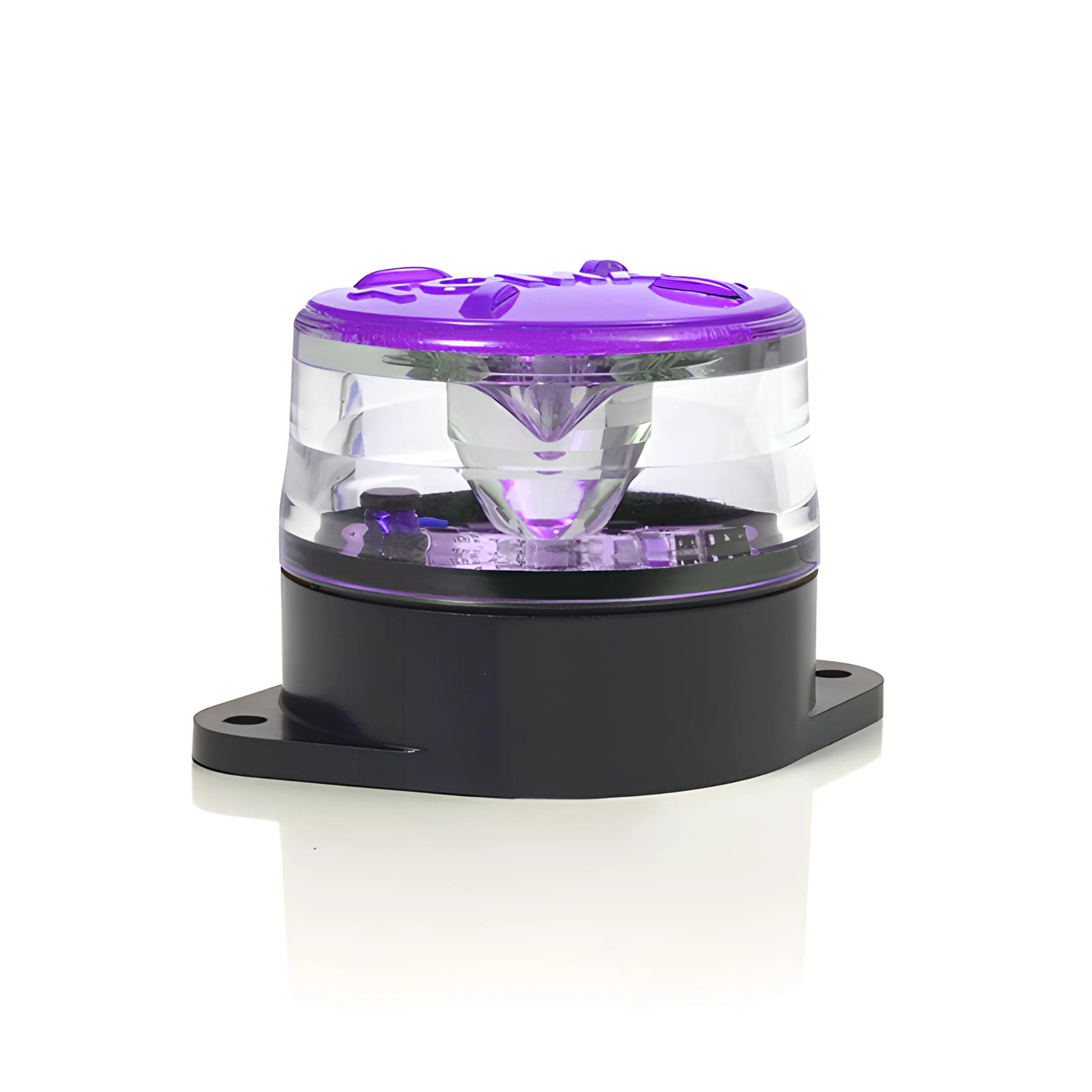

The MicroLERT is a Mini LED Warning Light that offers unique features not before seen in industrial signaling devices. It is the first such light designed from the ground up to take full advantage of LED lighting technology.

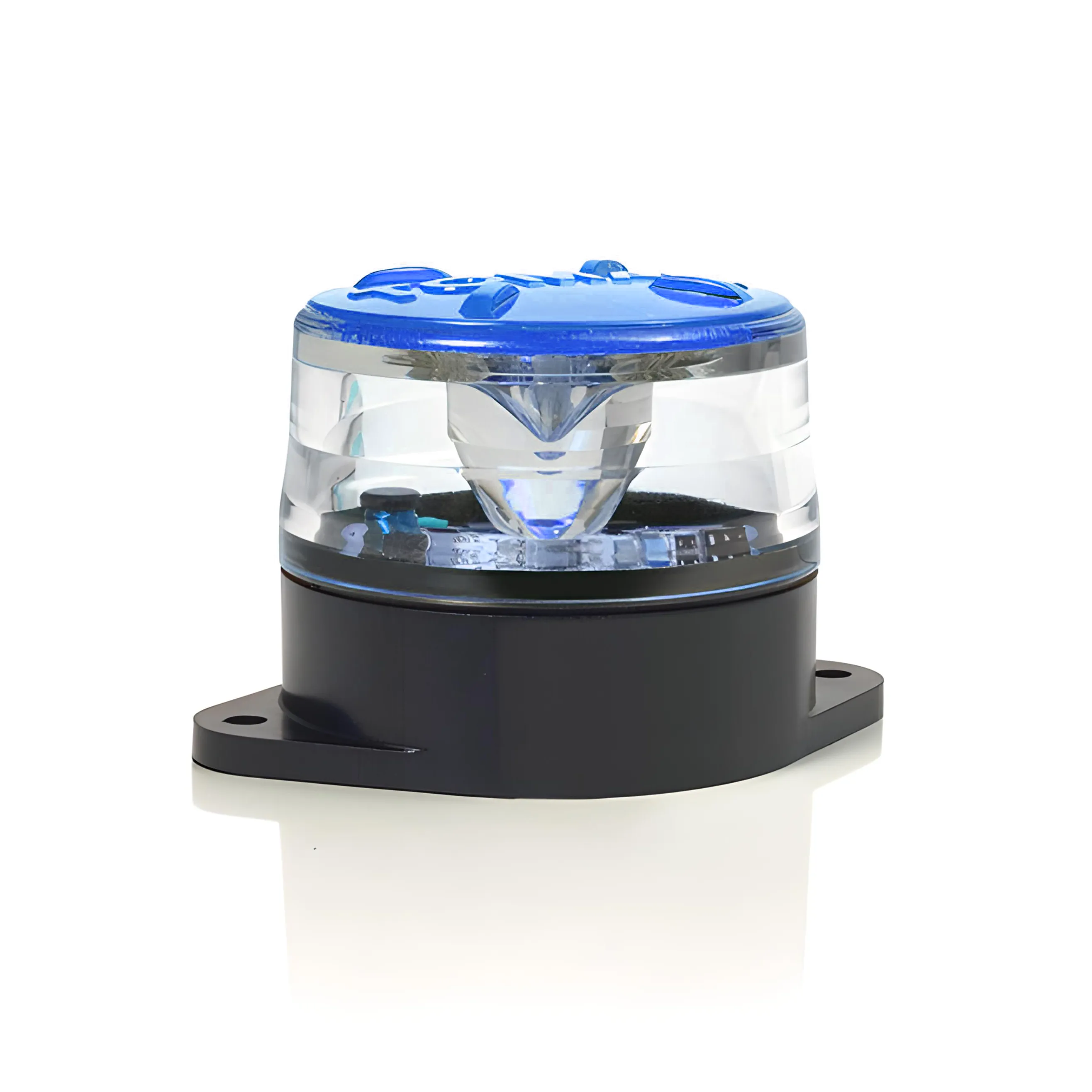

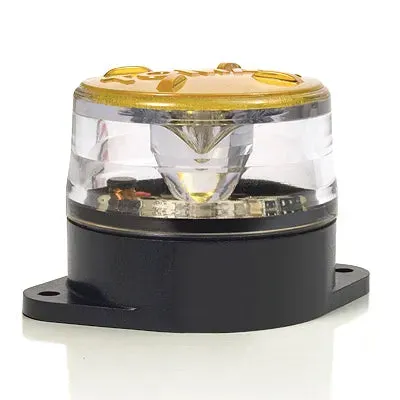

The MicroLERT features an integral inverted cone design to provide full 360 degree coverage. The MicroLERT lens is engineered for maximum light output and color clarity, and allows more of the LED light to be projected out than do conventional Fresnel lenses.
Durable Industrial Construction
The tough Lexan lens is spun welded to the base to completely seal out moisture. The MicroLERT is UL listed and manufactured to NEMA 4X specifications. It is available in five LED colors (amber, blue, green, red, and white); and in steady-burn or flashing models.
The MicroLERT will operate over a wide AC and DC input voltage ranges. The DC version is designed to operate from 10-100 VDC and the AC version from 85-265 VAC. The MicroLERT is guaranteed against factory defects for a full 5 years.
Key Features
- 5-year warranty
- High power LED
- NEMA 4X
- UL Listed
- Wide AC and DC input voltage
- Lexan lens
- Steady-on or Flashing

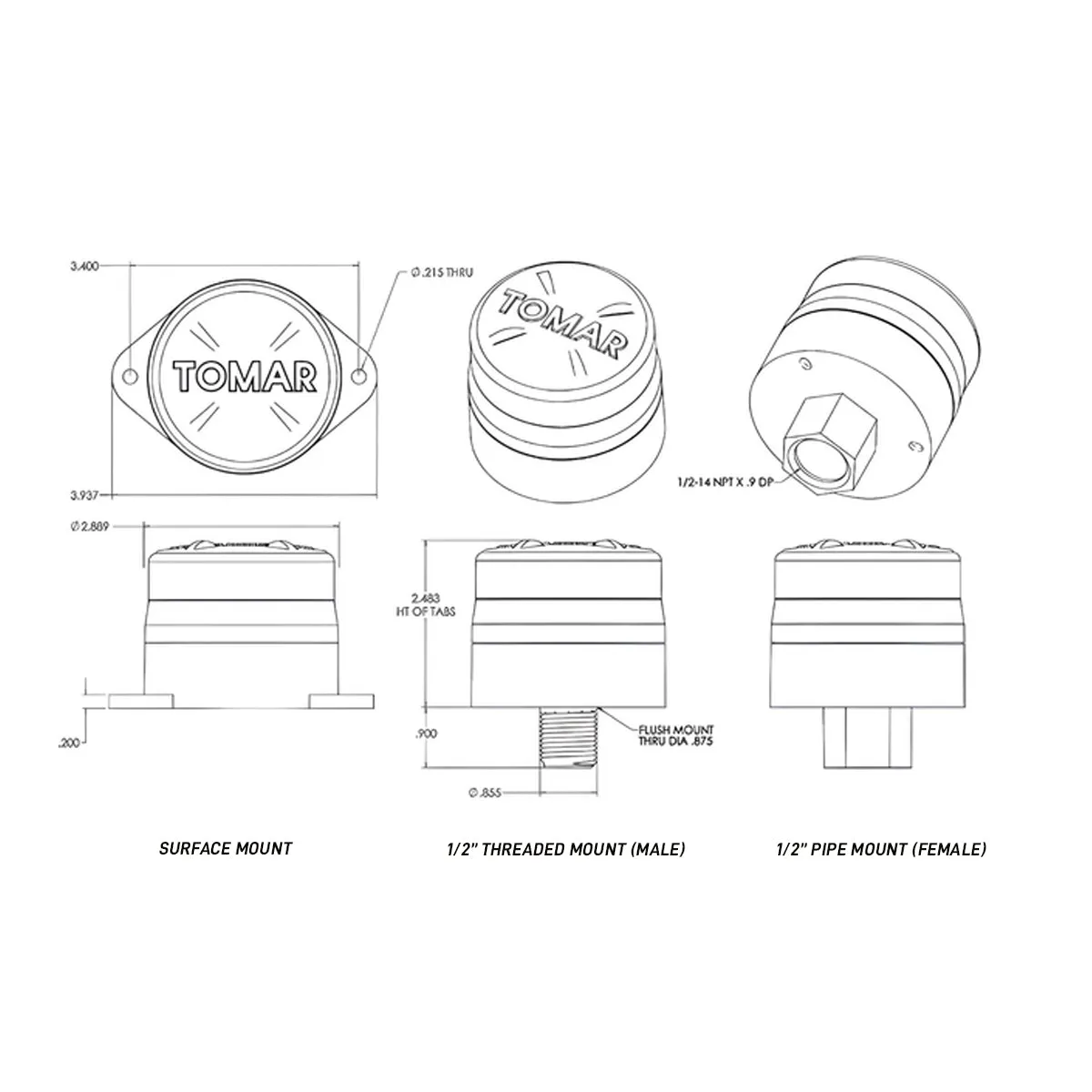

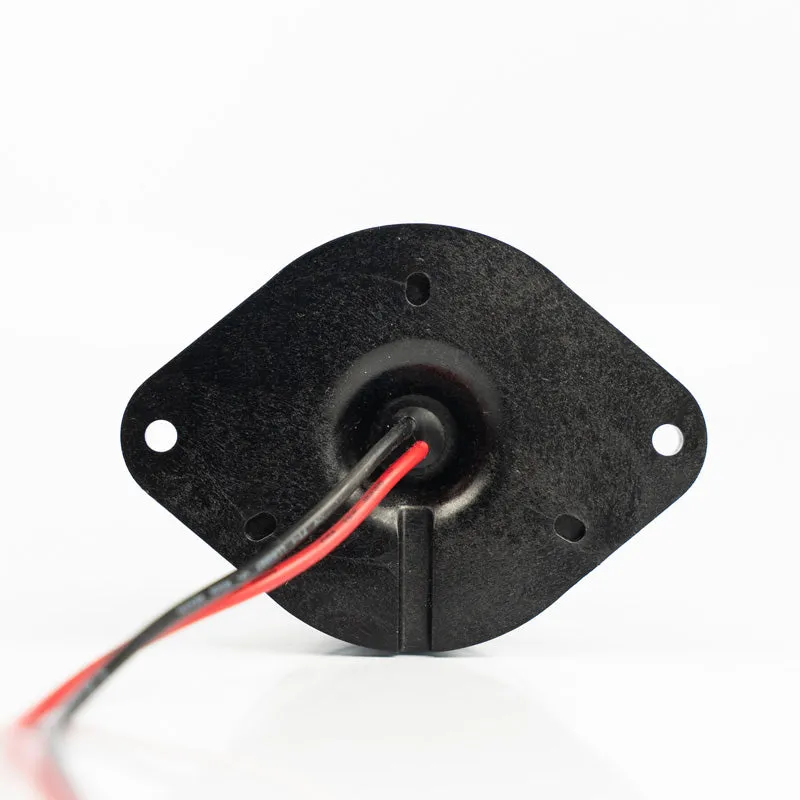

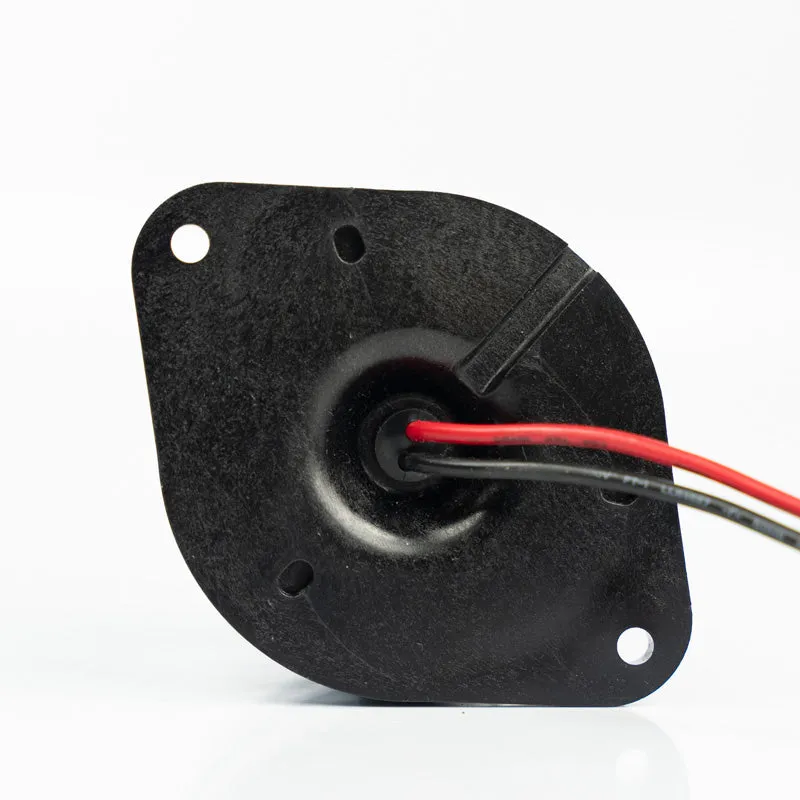

- Surface, Pipe, or Thread mounts
- Sealed construction – NEMA 6P capable

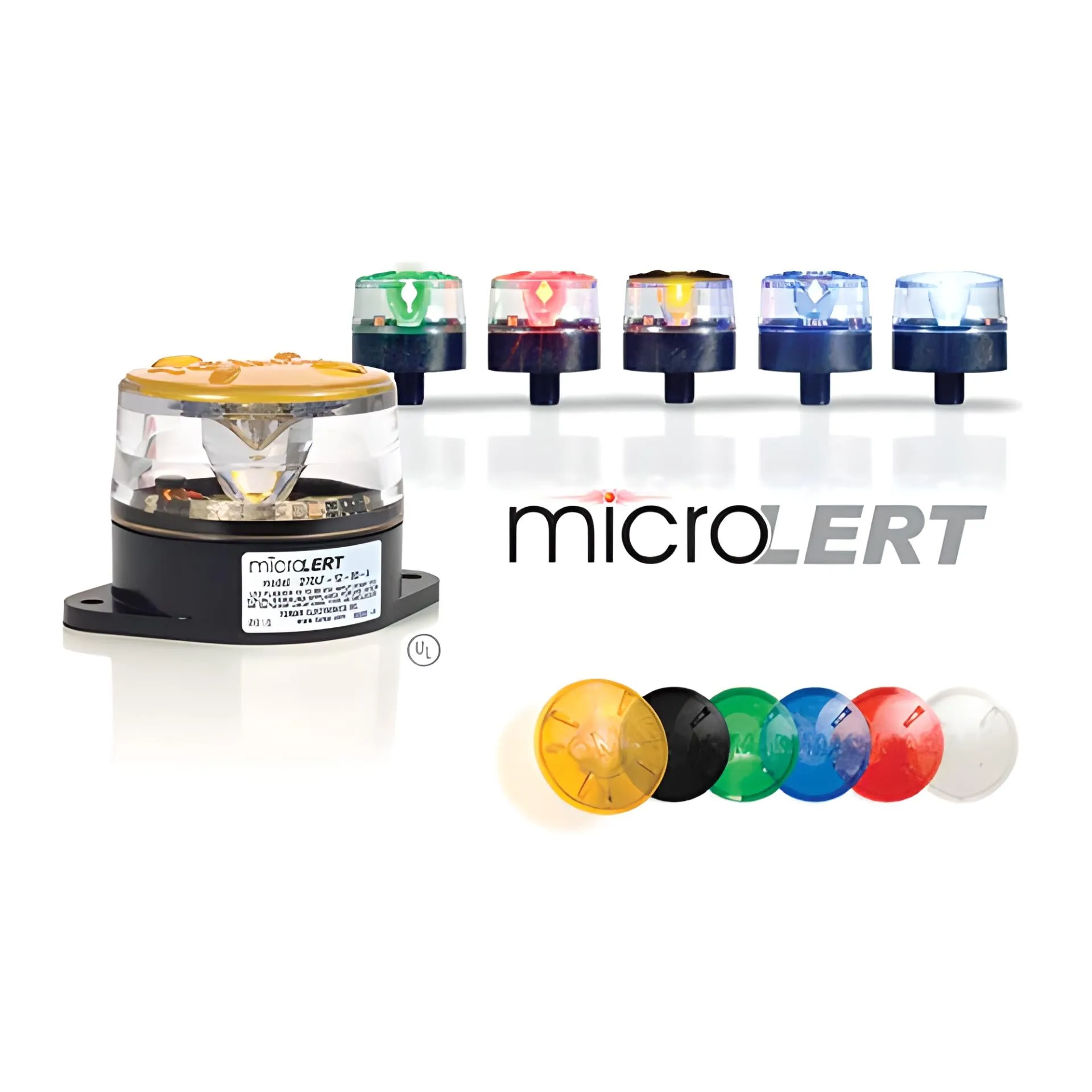

- 5 LED colors – Amber, Blue, Red, Green, and White
- Top blackout cap
Specs
- Lamp Type: LED
- Flash Rate: 75 NEOBE® flashes per minute – each flash containing 7 rapid bursts of light (approximately 560 ms “on-time” and 240 ms “off-time”)
- Voltage and Amperage:
- 200 mA @ 24 VDC Flashing; 420 mA Steady-burn
- 040 mA @ 120 VAC Flashing; 085 mA Steady-burn
- 020 mA @ 240 VAC Flashing; 045 mA Steady-burn
- Operating Temperature: -40 to 85°C
MicroLERT Models
| Model | Description | Voltage |

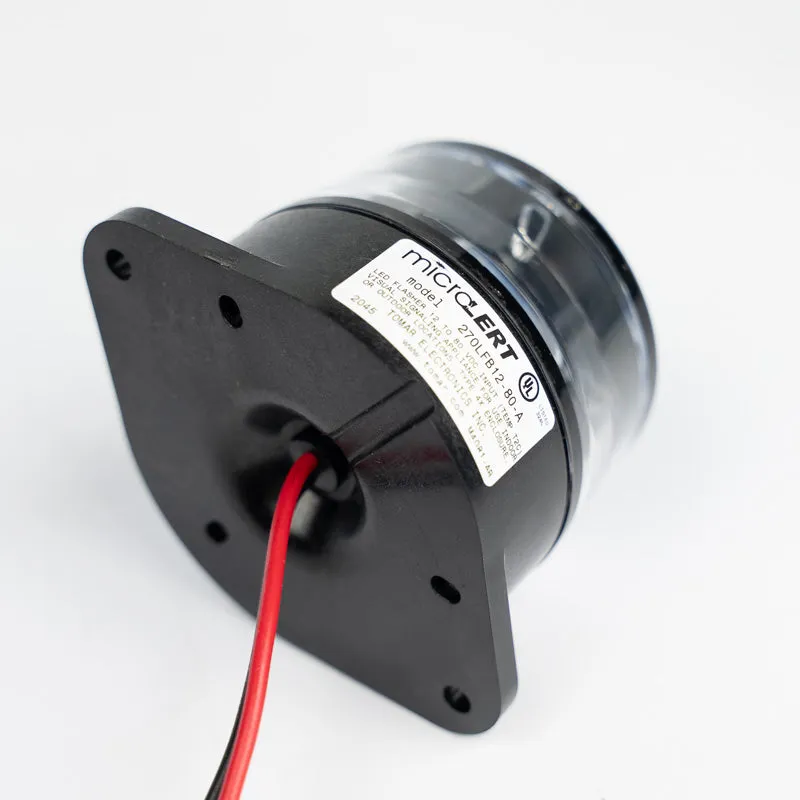

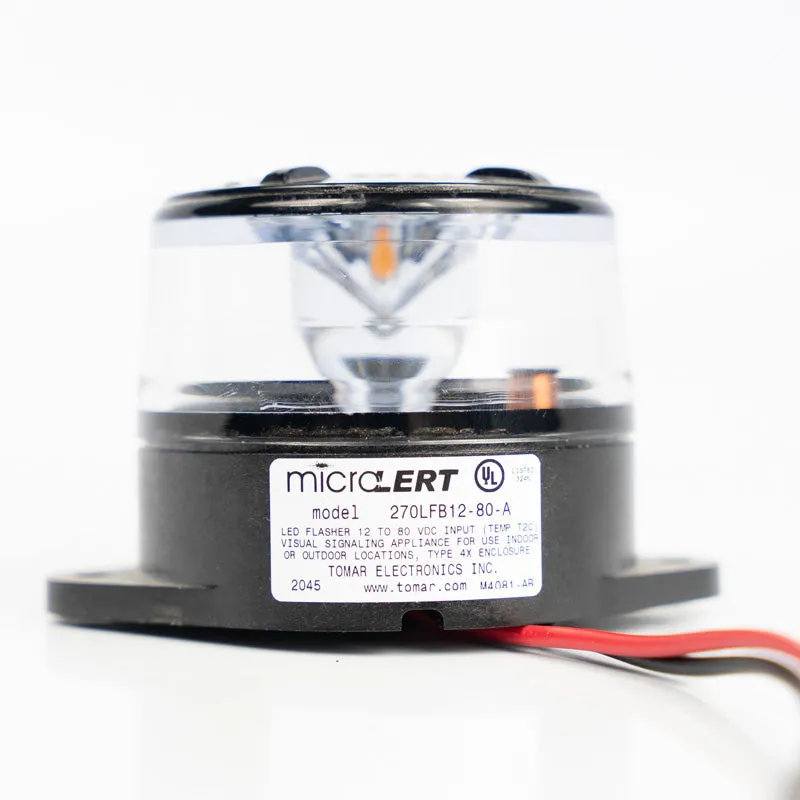

| 270LF-12-80 | Flashing Flange Mount | 12-80 VDC |
| 270LF-120-240 | Flashing Flange Mount | 120-240 VAC |
| 270LS-12-80 | Steady-On Flange Mount | 12-80 VDC |
| 270LS-120-240 | Steady-On Flange Mount | 120-240 VAC |
| 290LF-12-80 | Flashing ½” Pipe Mount | 12-80 VDC |
| 290LF-120-240 | Flashing ½” Pipe Mount | 120-240 VAC |
| 290LS-12-80 | Steady-On ½” Pipe Mount | 12-80 VDC |
| 290LS-120-240 | Steady-On ½” Pipe Mount | 120-240 VAC |
| 295LF-12-80 | Flashing ½” Thread Mount | 12-80 VDC |
| 295LF-120-240 | Flashing ½” Thread Mount | 120-240 VAC |
| 295LS-12-80 | Steady-On ½” Thread Mount | 12-80 VDC |
| 295LS-120-240 | Steady-On ½” Thread Mount | 120-240 VAC |
