- Color: Red
- 6-32V DC / 250A Continuous / 360A Intermittent
- Overall Dimensions: 5 1/4" Dia. x 2 5/8" H
- Connections: (2) 3/8" Dia. studs
- Sold as seen in pictures. Customers please note every computer shows colors differently. All measurements are approximate.

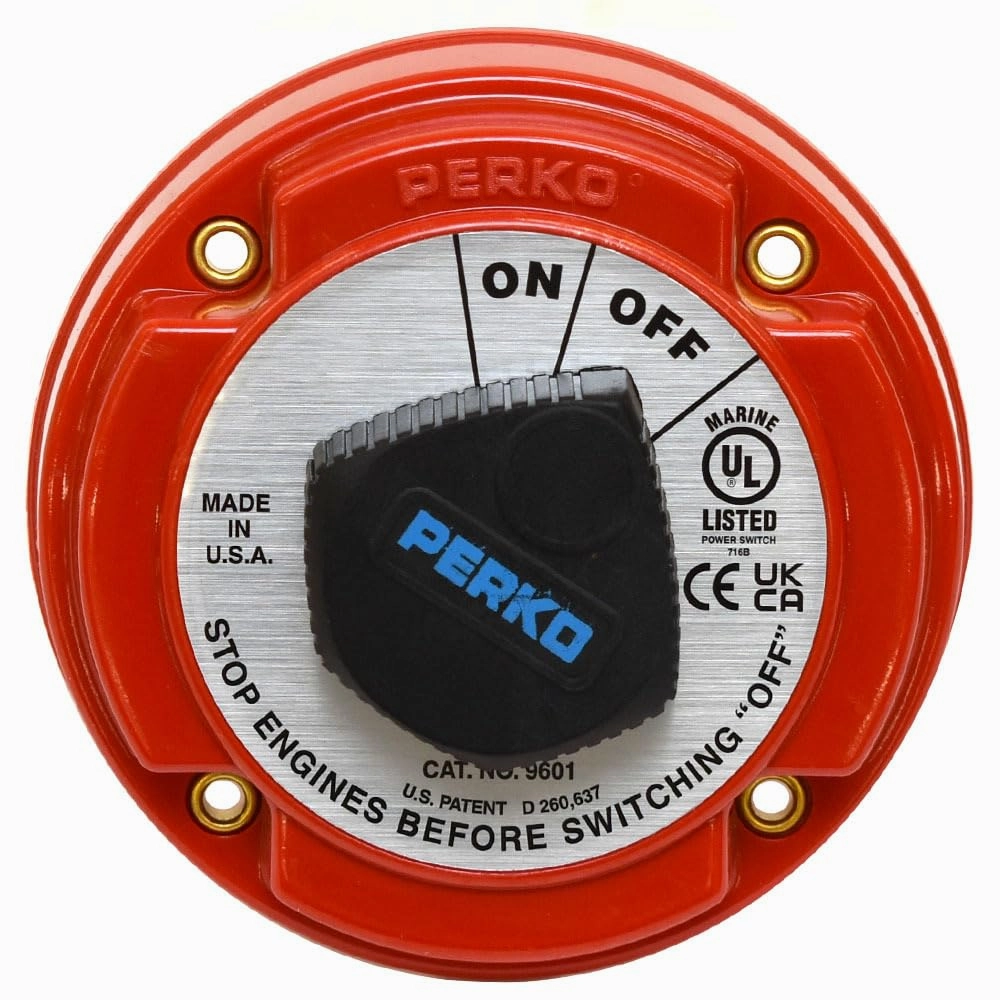

Boat part number 1115568 is a new battery disconnect switch from Perko, part number 9601DP.
This battery disconnect switch is constructed out of red plastic. It measures approximately 5 1/4" Dia. x 2 5/8" H overall. Features a (2) position switch. Rated for 6-32V DC, 250A continuous, and 360A intermittent. Connects with (2) 3/8" Dia. studs and mounts with (4) 1/4" Dia. holes set apart 3" center to center
Specifications:
- Part Manufacturer: Perko
- Part Number: 9601DP
- Material: Plastic
- Color: Red
- Finish: Glossy
- Rating: 6-32V DC / 250A Continuous / 360A Intermittent
- Overall Dimensions: 5 1/4" Dia. x 2 5/8" H
- Mounts: (4) 1/4" Dia. holes set apart 3" CTC
- Connections: (2) 3/8" Dia. studs
- Package Dimensions : 8 x 6 x 3 inches; 12 ounces
- Date First Available : March 14, 2025
- Manufacturer : Generic
