- Display flips when positioned upside down to read correctly
- 5 display modes (degrees in 1 or 2 decimal points, percent, feet & inches (rise/run) in decimal, Feet & inches in fractions, and mm/m)
- Simple one button calibration
- Carrying case included
- Uses 2 AA batteries

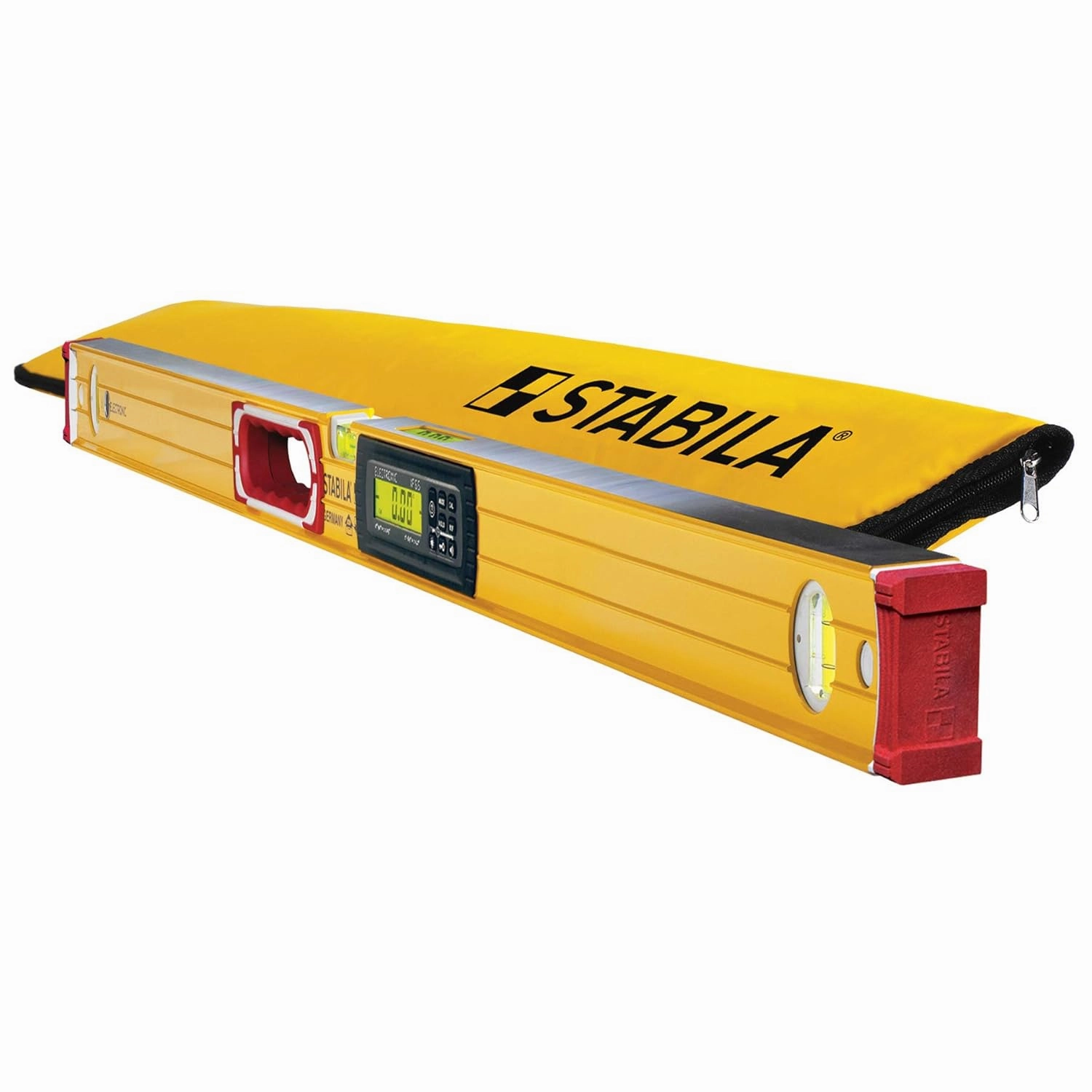

Description This rugged and practical high-quality level is the choice for any trade that needs to set angles precisely and quickly. If your work is going to be checked, invest in German Engineering. The Checkers are using STABILA. The electronic measuring technology and precision vials makes work faster and more efficient. The two illuminated digital displays can be read from both the side and the top. It is IP 65 certified therefore fully washable and dustproof. When STABILA designed this electronic level, they added everything you need and then some, making this a tool you can’t do without. Applications Measure, set or duplicate any slope or angle on the work site. Precise slope measurements as needed for ADA 4.8.2 handicap ramp compliance. Reads in the same scale as your prints. Instantly converts measurements to any scale. Rise & run to degrees, degrees to percent, etc. Technical data Measurement accuracy in normal position: ±1/32in 72in Measurement accuracy in reverse position: ±1/32in 72in Accuracy with electronic inclination measurement at 0° and 90°: /- 0.05° Accuracy with electronic inclination measurement at: 1° to 89° /- 0.20° Measuring modes: °, %, mm/m, inch/ft Number of measuring surfaces: 2 End caps: Removable / Wall Grips / Shock Absorbing Profile: Rectangular profile with ribs Protection class : IP 65 Battery type: AA
- Is Discontinued By Manufacturer : No
- Product Dimensions : 49.5 x 4.5 x 2.5 inches; 2.8 Pounds
- Batteries : 2 AA batteries required. (included)
- Date First Available : January 22, 2016
- Manufacturer : Bon Tool
